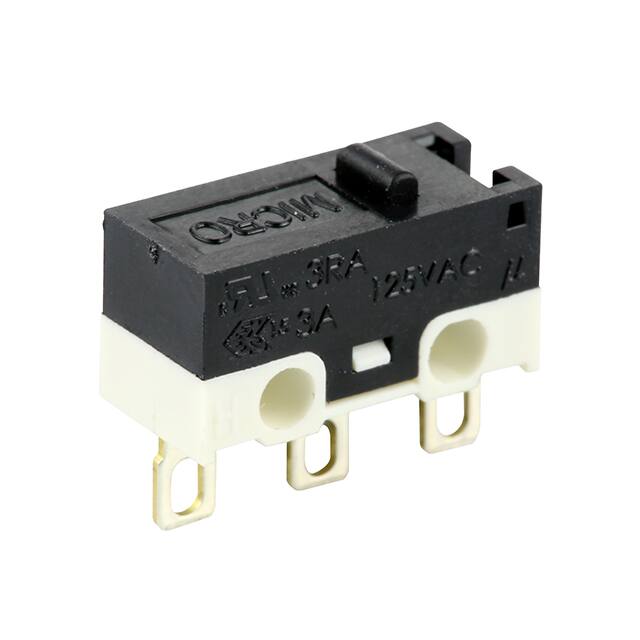

ZX40E10A01

Teknik Özellikler

Operating Position

0.217 (5.5mm)

Mechanical Life

1,000,000 Cycles

Differential Travel

0.012 (0.3mm)

Terminal

Solder

HTS Kodu

8536.50.70.00

Depth

5.8mm

Switch Function

On-Mom

Current Rating Amps

3A AC

Housing Material

Polybutylene

Electricallife

10,000 Cycles

Seri

ZX

Overtravel

0.010 (0.25mm)

Montaj Tipi

Chassis Mount

Voltage Rated Ac

125V

Release Force

20gf

Max Voltage Rating Ac

125V

Max Current Rating

3A

Operating Force

150gf

Terminal Stili

Solder Lug

Uzunluk

12.8mm

Nem Hassasiyeti (MSL)

Not Applicable

Switch Type

SNAP ACTING/LIMIT SWITCH

Parça Durumu

Active

Actuator Type

Round (Pin Plunger)

Çalışma Sıcaklığı

-40°C~120°C

Akım Değeri

3A

Additional Feature

MICRO SWITCH

Contact Currentacmax

3A

Body Height

6.5mm

Fabrika Tedarik Süresi

12 Weeks

ECCN Kodu

EAR99

Yayın Yılı

2010

Yüzey Montaj

NO

RoHS Durumu

Non-RoHS Compliant

Circuit

SPDT

Ambalaj

Bulk

Contact Materials

Silver

Pretravel

0.051 (1.3mm)

Contact Ac Max Rating R Load

3A@125VAC

Mounting Feature

PANEL MOUNT
