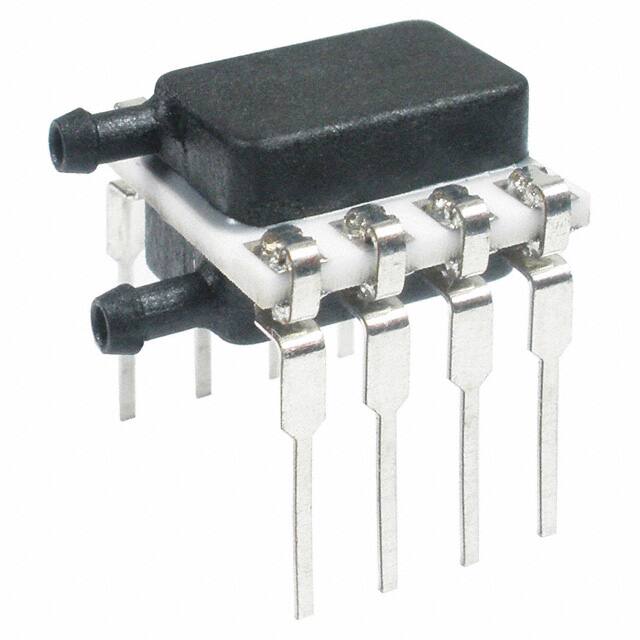

TSCDRRN030PDUCV

Teknik Özellikler

Voltage Rated Dc

5V

Kurşunsuz Kodu

yes

Maximum Pressure

±115PSI (±792.9kPa)

Yayın Yılı

2011

Applications

Board Mount

Terminal Stili

PC Pin

Output

0 mV ~ 52.5 mV (5V)

Port Size

Male - 0.08 1.93mm Tube Dual

Accuracy

±0.15%

Kılıf / Paket

8-DIP (0.524, 13.30mm), Dual Ports, Same Side

Pin Sayısı

8

RoHS Durumu

RoHS Compliant

Operating Pressure

±30PSI (±206.84kPa)

Seri

TruStability® TSC

Fabrika Tedarik Süresi

10 Weeks

Çıkış Tipi

Wheatstone Bridge

Parça Durumu

Active

Reach Svhc

Unknown

Sensorstransducers Type

PRESSURE SENSOR,STRAIN GUAGE

Port Style

Barbed

Çalışma Sıcaklığı

-40°C~85°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Besleme Gerilimi

1.5V~12V

Pressure Type

Differential

Nominal Supply Current

600μA

Özellikler

Temperature Compensated
