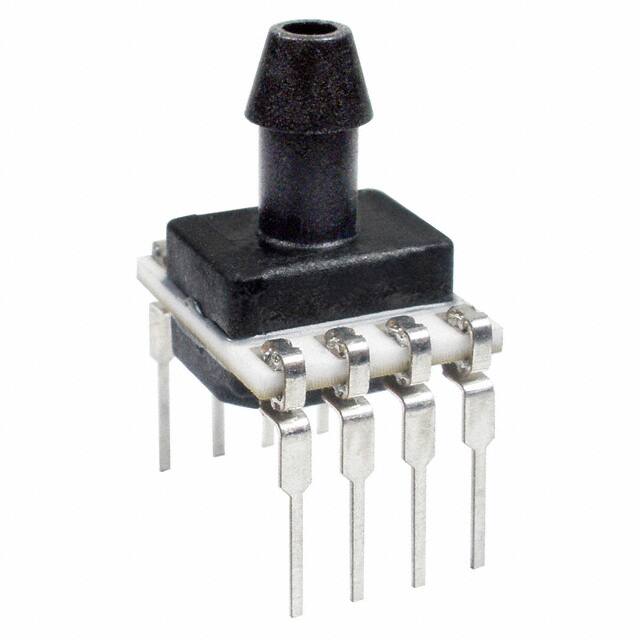

TSCDANN150PGUCV

Teknik Özellikler

Maximum Pressure

245PSI (1689.22kPa)

Yayın Yılı

2011

Voltage Rated Dc

5V

Applications

Board Mount

Yüzey Montaj

NO

Accuracy

±0.15%

Kılıf / Paket

8-DIP (0.524, 13.30mm), Top Port

Terminal Stili

PC Pin

Output

0 mV ~ 45.75 mV (5V)

Port Size

Male - 0.19 4.93mm Tube

Seri

TruStability® TSC

Operating Pressure

150PSI (1034.21kPa)

RoHS Durumu

RoHS Compliant

Pin Sayısı

8

Fabrika Tedarik Süresi

7 Weeks

Çıkış Tipi

Wheatstone Bridge

Sensorstransducers Type

PRESSURE SENSOR,PEIZORESISTIVE

Reach Svhc

Unknown

Parça Durumu

Active

Terminal

Through Hole

Çalışma Sıcaklığı

-40°C~85°C

Port Style

Barbed

Pressure Rangemax

150 Psi

Additional Feature

IT HAS ACCURACY 0.15 PERCENTAGE

Pressure Sensing Mode

GAGE

Pressure Type

Vented Gauge

Besleme Gerilimi

1.5V~12V

Özellikler

Temperature Compensated

Nominal Supply Current

600μA

Nem Hassasiyeti (MSL)

1 (Unlimited)
