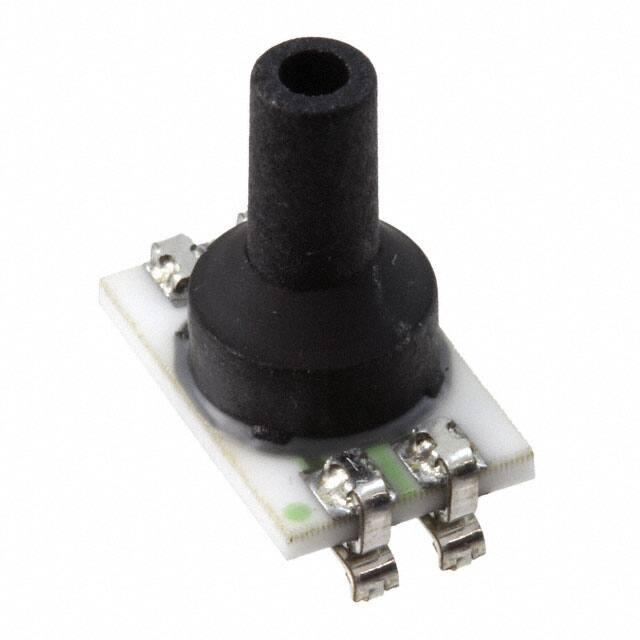

TBPMLNN060PGUCV

Teknik Özellikler

Port Style

Barbless

Terminal Stili

SMD (SMT) Tab

Besleme Gerilimi

1.5V~12V

Applications

Board Mount

Output

0 mV ~ 6.5 mV (5V)

Yüzey Montaj

YES

Reach Svhc

Unknown

Accuracy

±0.15%

Yayın Yılı

2014

Seri

TBP

Max Supply Current

1mA

Operating Pressure

60PSI (413.69kPa)

Nominal Supply Current

600μA

Maximum Pressure

145PSI (999.74kPa)

Port Size

Male - 0.13 3.18mm Tube

Özellikler

Temperature Compensated

RoHS Durumu

RoHS Compliant

Operating Supply Voltage

5V

Kılıf / Paket

6-SMD, No Lead, Top Port

Pin Sayısı

4

Additional Feature

IT HAS ACCURACY 0.15 PERCENTAGE

Pressure Type

Vented Gauge

Voltage Rated Dc

5V

Pressure Rangemax

60 Psi

Sensorstransducers Type

PRESSURE SENSOR,PEIZORESISTIVE

Fabrika Tedarik Süresi

9 Weeks

Çalışma Sıcaklığı

-40°C~125°C

Parça Durumu

Active

Terminal

SMD/SMT

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mounting Feature

SURFACE MOUNT

Pressure Sensing Mode

GAGE

Çıkış Tipi

Wheatstone Bridge
