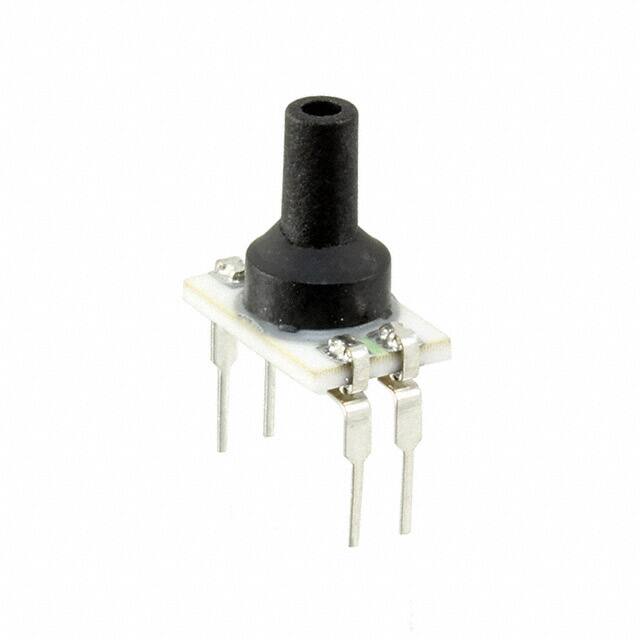

TBPDLNN030PGUCV

Teknik Özellikler

Port Style

Barbless

Terminal Stili

PC Pin

Besleme Gerilimi

1.5V~12V

Applications

Board Mount

Output

0 mV ~ 27.5 mV (5V)

Yüzey Montaj

NO

Reach Svhc

Unknown

Accuracy

±0.15%

Yayın Yılı

2014

Seri

TBP

Max Supply Current

1mA

Operating Pressure

30PSI (206.84kPa)

Nominal Supply Current

600μA

Maximum Pressure

115PSI (792.9kPa)

Port Size

Male - 0.13 3.18mm Tube

Özellikler

Temperature Compensated

Kılıf / Paket

4-DIP (0.453, 11.50mm), Top Port

Operating Supply Voltage

5V

RoHS Durumu

RoHS Compliant

Pin Sayısı

4

Additional Feature

IT HAS ACCURACY 0.15 PERCENTAGE

Pressure Type

Vented Gauge

Voltage Rated Dc

5V

Pressure Rangemax

30 Psi

Sensorstransducers Type

PRESSURE SENSOR,PEIZORESISTIVE

Fabrika Tedarik Süresi

10 Weeks

Parça Durumu

Active

Çalışma Sıcaklığı

-40°C~125°C

Terminal

Through Hole

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pressure Sensing Mode

GAGE

Çıkış Tipi

Wheatstone Bridge
