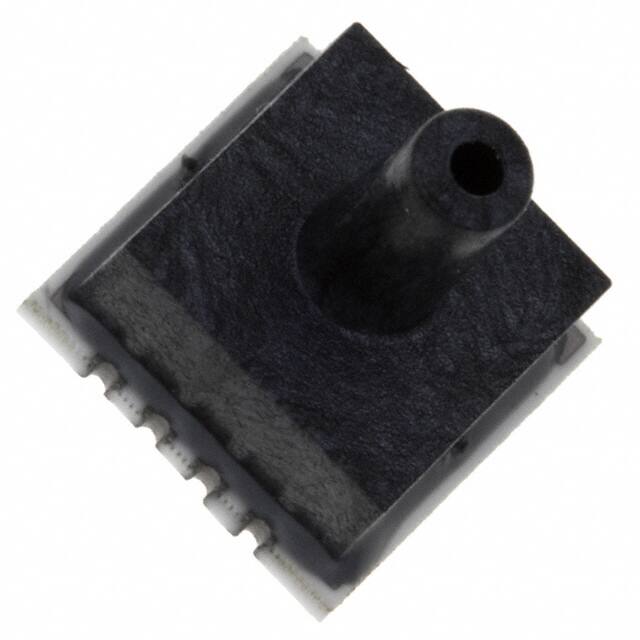

SXP100GSMTP

Teknik Özellikler

Çıkış Tipi

Wheatstone Bridge

Accuracy

±0.5%

Port Style

Barbless

Pressure Type

Vented Gauge

Output

0 mV ~ 150 mV (5V)

Pin Sayısı

8

Kılıf / Paket

8-SMD Module

Offsetnom

-20MV

Operating Supply Voltage

12V

REACH Uyumluluk Kodu

unknown

Additional Feature

IT HAS SENSITIVITY OF 0.30 MV/PSI

Parça Durumu

Obsolete

Nem Hassasiyeti (MSL)

1 (Unlimited)

Max Pressure

150 PSI

Operating Pressure

100PSI (689.48kPa)

Applications

Board Mount

Terminal

PCB

Seri

SX SMT

Yayın Yılı

2008

Fabrika Tedarik Süresi

14 Weeks

Body Length Or Diameter

7.61mm

Çalışma Sıcaklığı

-40°C~125°C

Mounting Feature

SURFACE MOUNT

Response Time

100 μs

Port Size

Male - 0.08 2.05mm Tube

RoHS Durumu

RoHS Compliant

Maximum Pressure

150PSI (1034.21kPa)

Yüzey Montaj

YES

Pressure Sensing Mode

GAGE

Sensorstransducers Type

PRESSURE SENSOR,PEIZORESISTIVE

Terminal Stili

SMD (SMT) Tab
