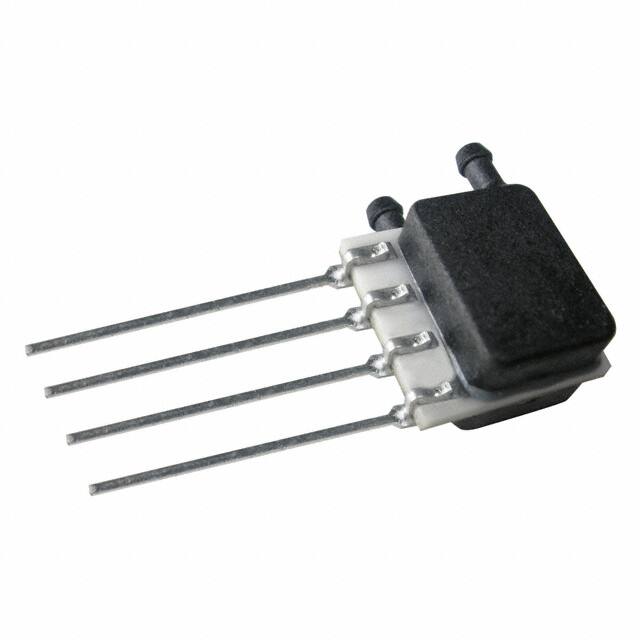

SSCSRRD001PD2A3

Teknik Özellikler

Body Length Or Diameter

12.84mm

Özellikler

Amplified Output, Temperature Compensated

Parça Durumu

Active

Pressure Rangemax

1 Psi

Number Of Bits

12

Fabrika Tedarik Süresi

7 Weeks

Besleme Gerilimi

3V~3.6V

Pressure Type

Differential

Body Breadth

6.26 mm

Maximum Pressure

±10PSI (±68.95kPa)

Housing

CERAMIC

Yayın Yılı

2011

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal Stili

PC Pin

Çalışma Sıcaklığı

-40°C~85°C

REACH Uyumluluk Kodu

unknown

Çıkış Tipi

I2C

Seri

TruStability® SSC

Applications

Board Mount

Yüzey Montaj

NO

Response Time

460 μs

Kılıf / Paket

4-SIP, Dual Ports, Same Side

Kurşunsuz Kodu

yes

RoHS Durumu

RoHS Compliant

Sensorstransducers Type

PRESSURE SENSOR,PEIZORESISTIVE

Port Style

Barbed

Mounting Feature

THROUGH HOLE MOUNT

Operating Pressure

±1PSI (±6.89kPa)

Output

12 b

Accuracy

±0.25%

Port Size

Male - 0.08 1.92mm Tube Dual
