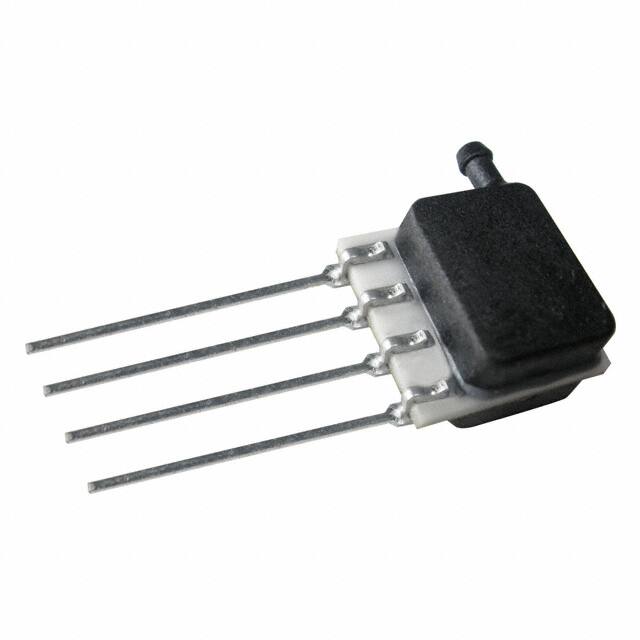

SSCSRNN015PAAA3

Teknik Özellikler

Additional Feature

TEMPERATURE COMPENSATED OVER -20 TO 85 DEG

Fabrika Tedarik Süresi

10 Weeks

Output Voltage

2.97V

Besleme Gerilimi

3V~3.6V

Pressure Type

Absolute

Pressure Rangemax

15 Psi

Max Supply Current

2.1mA

Özellikler

Amplified Output, Temperature Compensated

Parça Durumu

Active

Nominal Supply Current

1.6mA

REACH Uyumluluk Kodu

unknown

Terminal Stili

PC Pin

Çalışma Sıcaklığı

-40°C~85°C

Yayın Yılı

2011

Nem Hassasiyeti (MSL)

1 (Unlimited)

Voltage Rated Dc

3.3V

Housing

CERAMIC

Maximum Pressure

30PSI (206.84kPa)

Kılıf / Paket

4-SIP, Side Port

Yüzey Montaj

NO

Applications

Board Mount

Response Time

1 ms

Çıkış Tipi

Analog Voltage

Seri

TruStability® SSC

Terminal

PC Pin

Accuracy

±0.25%

Output

0.33 V ~ 2.97 V

Port Size

Male - 0.08 1.92mm Tube

Pin Sayısı

4

Operating Pressure

15PSI (103.42kPa)

Sensorstransducers Type

PRESSURE SENSOR,PEIZORESISTIVE

Port Style

Barbed

RoHS Durumu

RoHS Compliant

Mounting Feature

THROUGH HOLE MOUNT

Max Pressure

30 PSI
