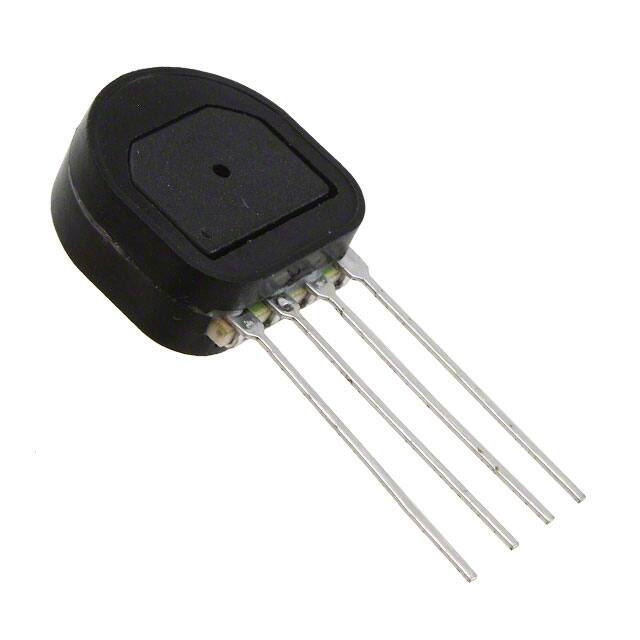

SSCSMNN060PGAA3

Teknik Özellikler

Parça Durumu

Active

Özellikler

Amplified Output, Temperature Compensated

Max Supply Current

2.1mA

Pressure Rangemax

60 Psi

Reach Svhc

No SVHC

Output Voltage

2.97V

Besleme Gerilimi

3V~3.6V

Pressure Type

Vented Gauge

Fabrika Tedarik Süresi

7 Weeks

Additional Feature

TEMPERATURE COMPENSATED OVER -20 TO 85 DEG

Housing

CERAMIC

Nominal Gerilim

3.3V

Maximum Pressure

120PSI (827.37kPa)

Voltage Rated Dc

3.3V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2011

Çalışma Sıcaklığı

-40°C~85°C

Terminal Stili

PC Pin

Nominal Supply Current

1.6mA

Seri

TruStability® SSC

Terminal

PC Pin

Çıkış Tipi

Analog Voltage

Response Time

1 ms

Yüzey Montaj

NO

Applications

Board Mount

Kılıf / Paket

4-SIP Module

Max Pressure

120 PSI

Mounting Feature

THROUGH HOLE MOUNT

Port Style

No Port

Sensorstransducers Type

PRESSURE SENSOR,PEIZORESISTIVE

RoHS Durumu

RoHS Compliant

Pressure Sensing Mode

GAGE

Operating Pressure

60PSI (413.69kPa)

Pin Sayısı

4

Accuracy

±0.25%

Output

0.33 V ~ 2.97 V
