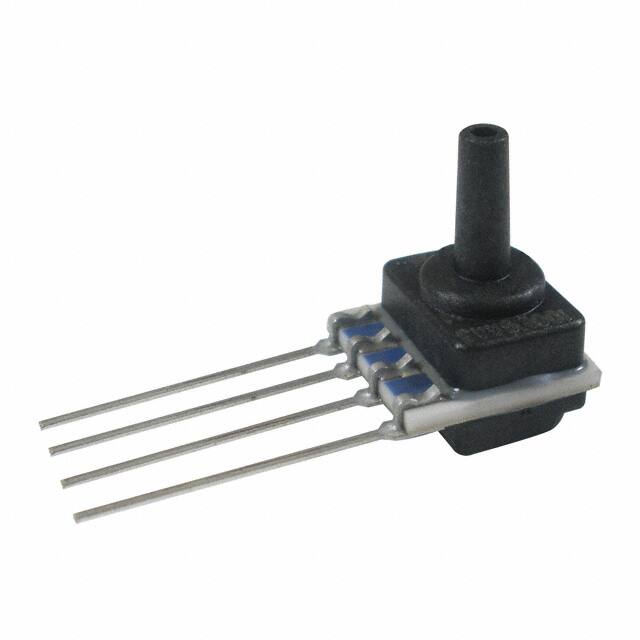

SSCSLNN100MGAA3

Teknik Özellikler

Applications

Board Mount

Yüzey Montaj

NO

Response Time

1 ms

Çıkış Tipi

Analog Voltage

Seri

TruStability® SSC

Terminal

PC Pin

Kılıf / Paket

4-SIP, Side Port

RoHS Durumu

RoHS Compliant

Port Style

Barbless

Sensorstransducers Type

PRESSURE SENSOR,PEIZORESISTIVE

Mounting Feature

THROUGH HOLE MOUNT

Max Pressure

12.33 PSI

Output

0.33 V ~ 2.97 V

Accuracy

±0.25%

Port Size

Male - 0.1 2.47mm Tube

Pin Sayısı

4

Operating Pressure

1.45PSI (10kPa)

Pressure Sensing Mode

GAGE

Max Supply Current

2.1mA

Body Length Or Diameter

13.75mm

Özellikler

Amplified Output, Temperature Compensated

Parça Durumu

Active

Body Breadth

10 mm

Additional Feature

TEMPERATURE COMPENSATED OVER -20 TO 85 DEG

Fabrika Tedarik Süresi

10 Weeks

Pressure Type

Vented Gauge

Besleme Gerilimi

3V~3.6V

Output Voltage

2.97V

Yayın Yılı

2011

Nem Hassasiyeti (MSL)

1 (Unlimited)

Maximum Pressure

12.33PSI (85kPa)

Housing

CERAMIC

REACH Uyumluluk Kodu

unknown

Nominal Supply Current

1.6mA

Terminal Stili

PC Pin

Çalışma Sıcaklığı

-40°C~85°C
