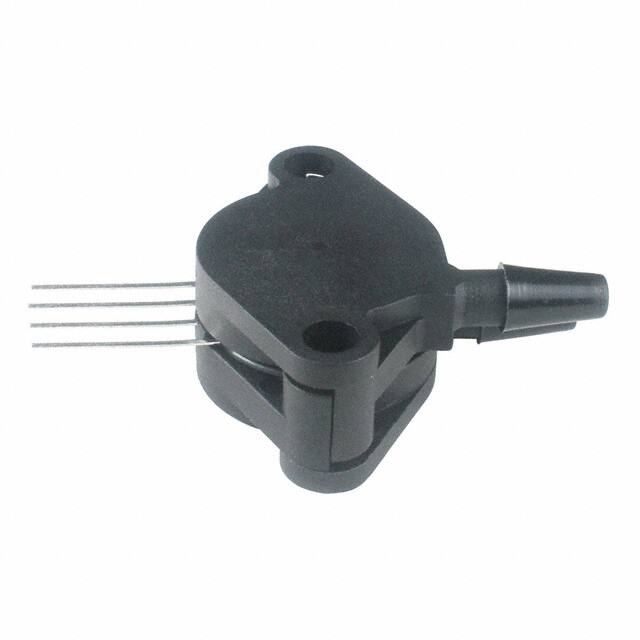

SSCSHHN001PDAA5

Teknik Özellikler

RoHS Durumu

RoHS Compliant

Port Style

Barbed

Sensorstransducers Type

PRESSURE SENSOR,PEIZORESISTIVE

Mounting Feature

THROUGH HOLE MOUNT

Output

0.5 V ~ 4.5 V

Accuracy

±0.25%

Port Size

Male - 0.16 3.94mm Tube Dual

Pin Sayısı

4

Operating Pressure

±1PSI (±6.89kPa)

Applications

Board Mount

Yüzey Montaj

NO

Operating Supply Voltage

5V

Response Time

1 ms

Çıkış Tipi

Analog Voltage

Seri

TruStability® SSC

Terminal

PCB

Kılıf / Paket

4-SIP, Dual Ports, Same Side

Yayın Yılı

2011

Nem Hassasiyeti (MSL)

1 (Unlimited)

Voltage Rated Dc

5V

Maximum Pressure

±10PSI (±68.95kPa)

Housing

CERAMIC

REACH Uyumluluk Kodu

unknown

Nominal Supply Current

2mA

Terminal Stili

PC Pin

Çalışma Sıcaklığı

-40°C~85°C

Pressure Rangemax

1 Psi

Max Supply Current

3mA

Özellikler

Amplified Output, Temperature Compensated

Parça Durumu

Active

Additional Feature

TEMPERATURE COMPENSATED OVER -20 TO 85 DEG

Fabrika Tedarik Süresi

10 Weeks

Besleme Gerilimi

4.75V~5.25V

Pressure Type

Differential

Output Voltage

4.5V
