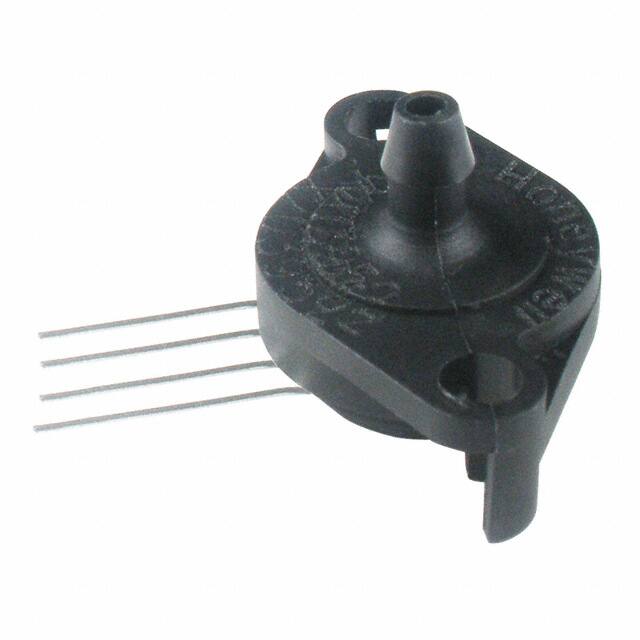

SSCSFNN150PGAA5

Teknik Özellikler

Pressure Sensing Mode

GAGE

Operating Pressure

150PSI (1034.21kPa)

Port Size

Male - 0.19 4.78mm Tube

Accuracy

±0.25%

Output

0.5 V ~ 4.5 V

Mounting Feature

THROUGH HOLE MOUNT

Port Style

Barbed

Sensorstransducers Type

PRESSURE SENSOR,PEIZORESISTIVE

RoHS Durumu

RoHS Compliant

Kılıf / Paket

4-SIP, Side Port

Seri

TruStability® SSC

Çıkış Tipi

Analog Voltage

Response Time

1000 μs

Yüzey Montaj

NO

Applications

Board Mount

Çalışma Sıcaklığı

-40°C~85°C

Terminal Stili

PC Pin

REACH Uyumluluk Kodu

unknown

Housing

CERAMIC

Maximum Pressure

250PSI (1723.69kPa)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2011

Pressure Type

Vented Gauge

Besleme Gerilimi

4.75V~5.25V

Fabrika Tedarik Süresi

10 Weeks

Additional Feature

TEMPERATURE COMPENSATED OVER -20 TO 85 DEG

Parça Durumu

Active

Özellikler

Amplified Output, Temperature Compensated

Pressure Rangemax

150 Psi
