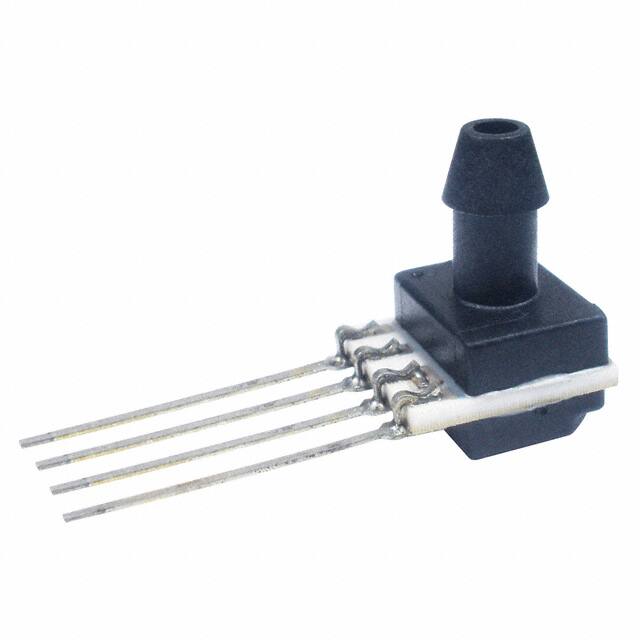

SSCSANN015PGAA3

Teknik Özellikler

Port Size

Male - 0.19 4.93mm Tube

Output

0.33 V ~ 2.97 V

Accuracy

±0.25%

Operating Pressure

5PSI (34.47kPa)

Pressure Sensing Mode

GAGE

Pin Sayısı

4

RoHS Durumu

RoHS Compliant

Sensorstransducers Type

PRESSURE SENSOR,PEIZORESISTIVE

Port Style

Barbed

Kılıf / Paket

4-SIP, Side Port

Response Time

1 ms

Operating Supply Voltage

3.3V

Applications

Board Mount

Seri

TruStability® SSC

Terminal

PCB

Çıkış Tipi

Analog Voltage

Montaj

Through Hole

REACH Uyumluluk Kodu

unknown

Nominal Supply Current

1.6mA

Çalışma Sıcaklığı

-40°C~85°C

Terminal Stili

PC Pin

Yayın Yılı

2011

Nem Hassasiyeti (MSL)

1 (Unlimited)

Maximum Pressure

30PSI (206.84kPa)

Housing

CERAMIC

Voltage Rated Dc

3.3V

Additional Feature

TEMPERATURE COMPENSATED OVER -20 TO 85 DEG

Besleme Gerilimi

3V~3.6V

Pressure Type

Vented Gauge

Output Voltage

2.97V

Fabrika Tedarik Süresi

10 Weeks

Pressure Rangemax

15 Psi

Max Supply Current

2.1mA

Parça Durumu

Active

Özellikler

Amplified Output, Temperature Compensated
