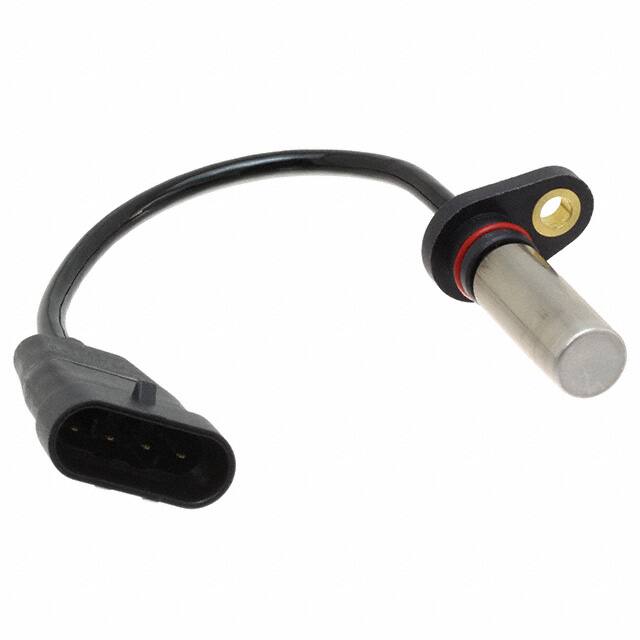

SNDH-T4P-G01

Teknik Özellikler

Operating Supply Voltage

18V

Sensing Method

Hall Effect

Seri

SNDH-T

Çıkış Tipi

Open Collector

Direnç

62.5202MOhm

Min Supply Voltage Dc

4.5V

Kılıf / Paket

Cylinder with Mounting Flange

RoHS Durumu

RoHS Compliant

Max Supply Voltage Dc

18V

Reach Svhc

Unknown

Parça Durumu

Active

Operating Supply Current

13.6mA

Body Length Or Diameter

15mm

Additional Feature

SHORT CIRCUIT PROTECTION

Output Voltage

17.5V

Besleme Gerilimi

4.5V~18V

Fabrika Tedarik Süresi

10 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2008

Body Height

45.5mm

Tip

Hall Effect Switch

Frekans

15kHz

Actuator Material

Magnet

Çalışma Sıcaklığı

-40°C~150°C TA

Terminal Stili

Connector

Max Output Current

20mA
