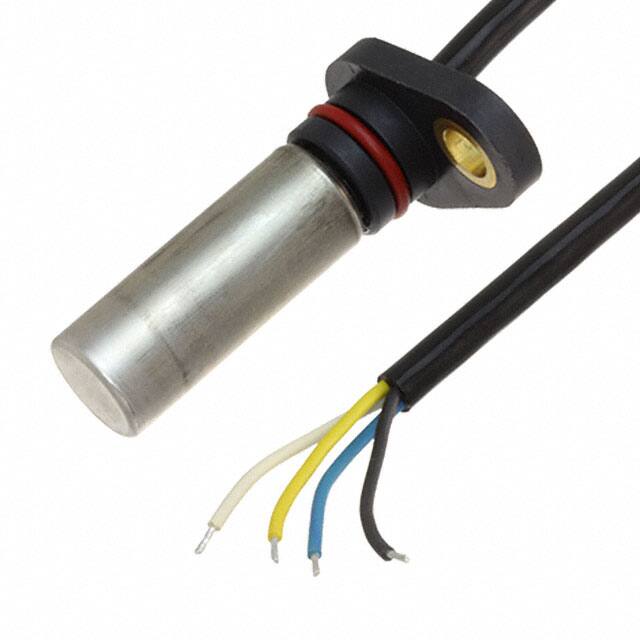

SNDH-T4L-G01

Teknik Özellikler

Min Supply Voltage Dc

4.5V

Kılıf / Paket

Cylinder with Mounting Flange

Operating Supply Voltage

18V

Sensing Method

Hall Effect

Seri

SNDH-T

Terminal

Wire Leads

Çıkış Tipi

Open Collector

Output Current

20mA

Min Output Voltage

500mV

RoHS Durumu

RoHS Compliant

Lead Length

555mm

Additional Feature

SHORT CIRCUIT PROTECTION

Output Voltage

-500mV

Besleme Gerilimi

4.5V~18V

Fabrika Tedarik Süresi

14 Weeks

Max Supply Voltage Dc

18V

Reach Svhc

No SVHC

Parça Durumu

Active

Operating Supply Current

13.6mA

Body Length Or Diameter

15mm

Montaj

Screw, Through Hole

Actuator Material

Magnet

REACH Uyumluluk Kodu

unknown

Çalışma Sıcaklığı

-40°C~150°C TA

Terminal Stili

Connector

Max Output Current

18mA

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2007

Tip

Hall Effect Switch

Body Height

45.5mm

Frekans

15kHz
