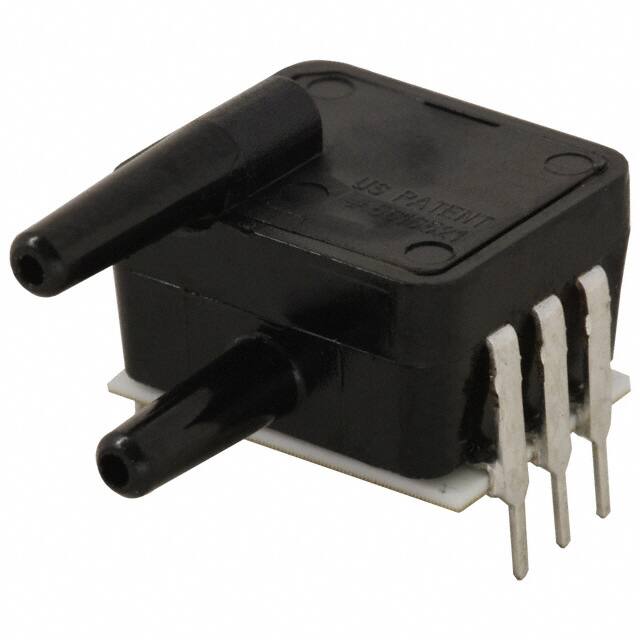

SDX005IND4

Teknik Özellikler

Pin Sayısı

6

Pressure Rangemax

0.18 Psi

Operating Pressure

0.18PSI (1.25kPa)

Output Voltage

20mV

Terminal Stili

PC Pin

Output

0 mV ~ 20 mV (12V)

Maximum Pressure

6.97PSI (48.09kPa)

Max Pressure

6.97 PSI

Seri

SDX IND

Voltage Rated Dc

20V

Nominal Gerilim

20V

Montaj

PCB, Through Hole

Accuracy

±1%

Direnç

4kOhm

Applications

Board Mount

Kılıf / Paket

6-DIP Module

Offsetnom

0MV

Sensorstransducers Type

PRESSURE SENSOR,PEIZORESISTIVE

Reach Svhc

No SVHC

Port Style

Barbless

Response Time

100 μs

Terminal

PCB

Özellikler

Temperature Compensated

Parça Durumu

Obsolete

Body Length Or Diameter

14mm

Kurşunsuz Kodu

yes

Pressure Type

Differential

Genişlik

13.97mm

Port Size

Male - 0.09 2.3mm Tube

Çalışma Sıcaklığı

-40°C~85°C

Yayın Yılı

2004

Nem Hassasiyeti (MSL)

1 (Unlimited)

Body Breadth

11.9 mm

Linearity

0.2 %

RoHS Durumu

RoHS Compliant

Body Height

10.9mm

Reference Voltage

12V

Fabrika Tedarik Süresi

4 Weeks

Çıkış Tipi

Wheatstone Bridge
