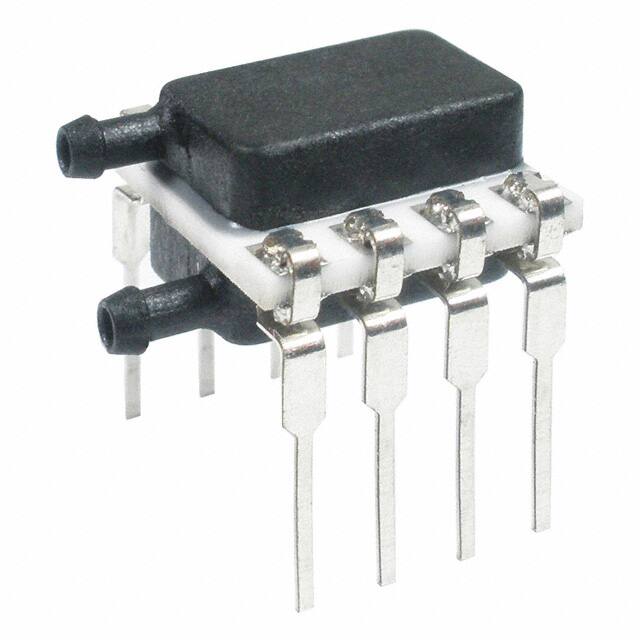

NSCDRRN001PGUNV

Teknik Özellikler

Port Style

Barbed

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

RoHS Compliant

Fabrika Tedarik Süresi

7 Weeks

Parça Durumu

Active

Pressure Type

Vented Gauge

Accuracy

±0.25%

Output

0 mV ~ 32.5 mV (5V)

Nominal Supply Current

1.5mA

Kılıf / Paket

8-DIP (0.524, 13.30mm), Dual Ports, Same Side

Seri

TruStability® NSC

Çıkış Tipi

Wheatstone Bridge

Sensorstransducers Type

PRESSURE SENSOR,STRAIN GUAGE

Operating Pressure

1PSI (6.89kPa)

Applications

Board Mount

REACH Uyumluluk Kodu

unknown

Besleme Gerilimi

1.5V~12V

Port Size

Male - 0.08 1.93mm Tube Dual

Kurşunsuz Kodu

no

Çalışma Sıcaklığı

-40°C~85°C

Maximum Pressure

10PSI (68.95kPa)

Operating Supply Voltage

5V

Yayın Yılı

2011

Terminal Stili

PC Pin
