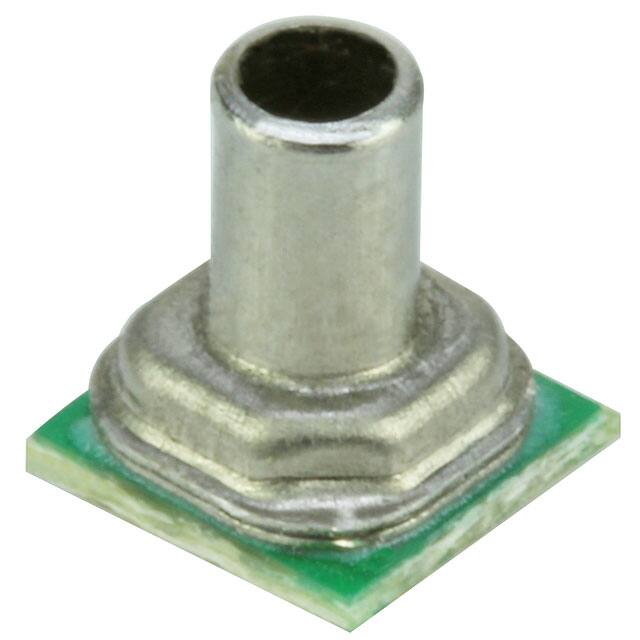

MPRLS0015PA0000SA

Teknik Özellikler

Port Size

Male - 0.1 2.5mm Tube

Seri

MPR

Yüzey Montaj

NO

Applications

Board Mount

Nominal Supply Current

1.7mA

Besleme Gerilimi

1.8V~3.6V

Çalışma Sıcaklığı

-40°C~85°C

Body Length Or Diameter

5mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sensorstransducers Type

PRESSURE SENSOR,PEIZORESISTIVE

Ambalaj

Tape & Reel (TR)

Pressure Type

Absolute

Özellikler

Amplified Output, Temperature Compensated

Parça Durumu

Active

Operating Pressure

15PSI (103.42kPa)

Accuracy

±0.25%

Output

24 b

Pressure Rangemax

15 Psi

Fabrika Tedarik Süresi

10 Weeks

RoHS Durumu

RoHS Compliant

Yayın Yılı

2017

Body Breadth

5 mm

Number Of Bits

14

Port Style

Barbless

Terminal Stili

SMD (SMT) Tab

Maximum Pressure

60PSI (413.69kPa)

Çıkış Tipi

SPI

Body Height

5.8mm

Kılıf / Paket

12-SMD Module
