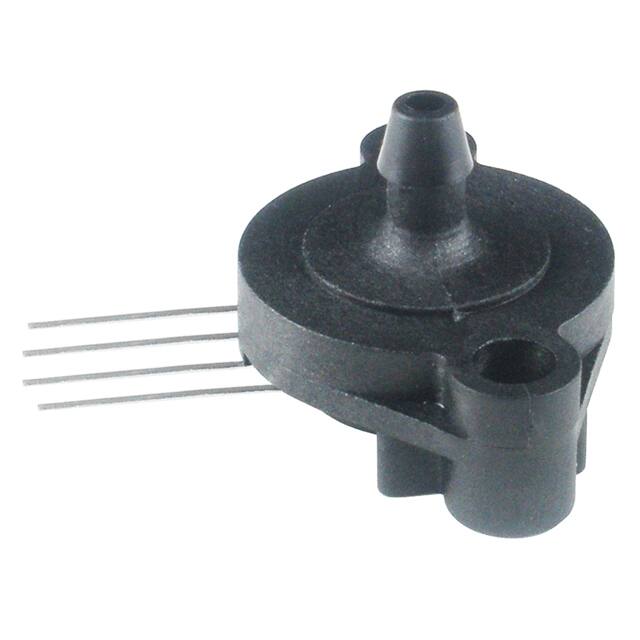

HSCSGNN001PGAA5

Teknik Özellikler

Pressure Rangemax

1 Psi

Terminal

PCB

Housing

CERAMIC

Çıkış Tipi

Analog Voltage

Terminal Stili

PC Pin

Voltage Rated Dc

5V

Çalışma Sıcaklığı

-20°C~85°C

Accuracy

±0.25%

Sensorstransducers Type

PRESSURE SENSOR,PEIZORESISTIVE

Yayın Yılı

2011

REACH Uyumluluk Kodu

unknown

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pressure Type

Vented Gauge

Port Size

Male - 0.19 4.78mm Tube

Output Voltage

4.5V

Applications

Board Mount

Parça Durumu

Active

Output

0.5 V ~ 4.5 V

Kılıf / Paket

4-SIP, Side Port

Fabrika Tedarik Süresi

10 Weeks

Operating Supply Voltage

5V

Besleme Gerilimi

4.75V~5.25V

Seri

TruStability® HSC

Response Time

1 ms

Port Style

Barbed

Operating Pressure

1PSI (6.89kPa)

Maximum Pressure

10PSI (68.95kPa)

Max Supply Current

3mA

RoHS Durumu

RoHS Compliant

Nominal Supply Current

2mA

Yüzey Montaj

NO

Pressure Sensing Mode

GAGE

Mounting Feature

THROUGH HOLE MOUNT

Özellikler

Amplified Output, Temperature Compensated

Max Pressure

10 PSI

Pin Sayısı

4
