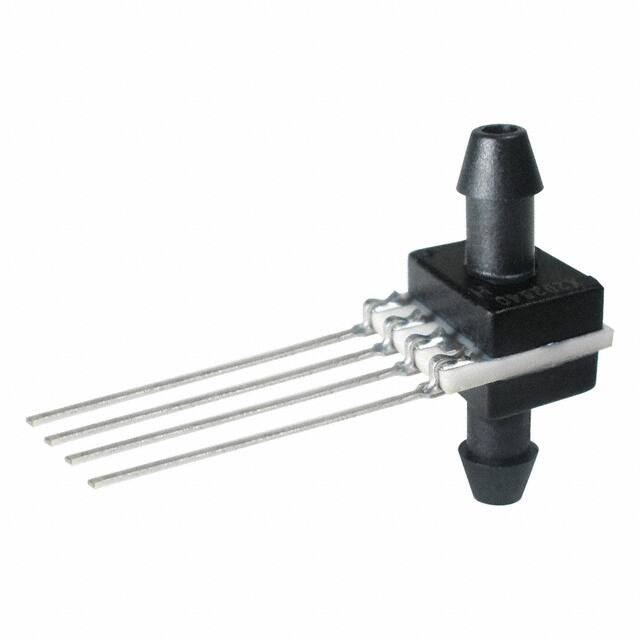

HSCSAAD100MDAA5

Teknik Özellikler

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pressure Type

Differential

Port Size

Male - 0.19 4.93mm Tube Dual

Applications

Board Mount

Parça Durumu

Active

Output

0.5 V ~ 4.5 V

Accuracy

±0.25%

Sensorstransducers Type

PRESSURE SENSOR,PEIZORESISTIVE

Yayın Yılı

2011

REACH Uyumluluk Kodu

unknown

Çıkış Tipi

Analog Voltage

Terminal Stili

PC Pin

Çalışma Sıcaklığı

-20°C~85°C

Pressure Rangemax

1.45 Psi

Housing

CERAMIC

RoHS Durumu

RoHS Compliant

Nominal Supply Current

2mA

Yüzey Montaj

NO

Pressure Sensing Mode

ABSOLUTE

Mounting Feature

THROUGH HOLE MOUNT

Özellikler

Amplified Output, Temperature Compensated

Maximum Pressure

±20.31PSI (±140kPa)

Besleme Gerilimi

4.75V~5.25V

Seri

TruStability® HSC

Response Time

1 ms

Port Style

Barbed

Operating Pressure

±1.45PSI (±10kPa)

Kılıf / Paket

4-SIP, Dual Ports, Opposite Sides

Fabrika Tedarik Süresi

10 Weeks
