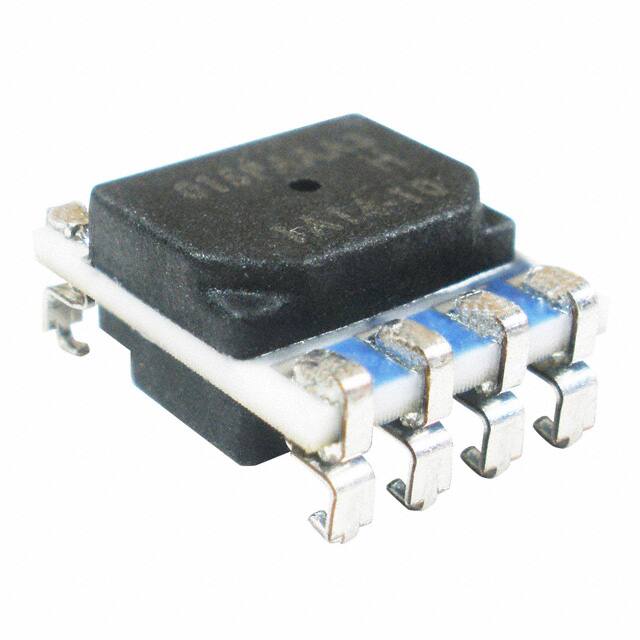

HSCMNNN015PA2A3

Teknik Özellikler

Operating Supply Voltage

3.3V

Fabrika Tedarik Süresi

10 Weeks

Body Height

6.41mm

Kılıf / Paket

8-SMD, J-Lead

Port Style

No Port

Response Time

1 ms

Seri

TruStability® HSC

Besleme Gerilimi

3V~3.6V

Operating Pressure

15PSI (103.42kPa)

Maximum Pressure

30PSI (206.84kPa)

RoHS Durumu

RoHS Compliant

Pin Sayısı

8

Özellikler

Amplified Output, Temperature Compensated

Yüzey Montaj

YES

Mounting Feature

SURFACE MOUNT

Nominal Supply Current

1.6mA

Pressure Rangemax

15 Psi

Body Length Or Diameter

13.4mm

Housing

CERAMIC

Terminal

SMD/SMT

Terminal Stili

J Lead

Çıkış Tipi

I2C

Çalışma Sıcaklığı

-20°C~85°C

Sensorstransducers Type

PRESSURE SENSOR,PEIZORESISTIVE

Body Breadth

10 mm

Accuracy

±0.25%

Yayın Yılı

2011

Pressure Type

Absolute

Number Of Bits

12

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Output

12 b

Kurşunsuz Kodu

yes

Applications

Board Mount
