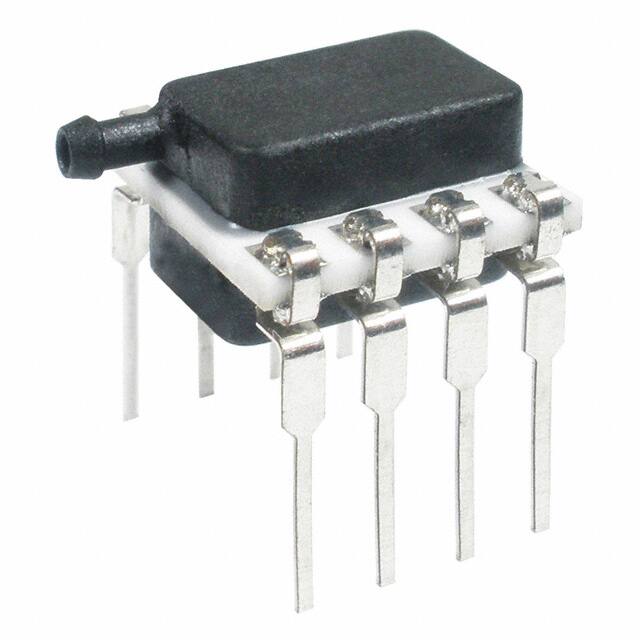

HSCDRNN030PAAA5

Teknik Özellikler

Pressure Rangemax

30 Psi

Operating Supply Voltage

5V

Mounting Feature

THROUGH HOLE MOUNT

Housing

CERAMIC

Port Style

Barbed

Besleme Gerilimi

4.75V~5.25V

Sensorstransducers Type

PRESSURE SENSOR,PEIZORESISTIVE

Çıkış Tipi

Analog Voltage

REACH Uyumluluk Kodu

unknown

Yüzey Montaj

NO

Maximum Pressure

60PSI (413.69kPa)

Çalışma Sıcaklığı

-20°C~85°C

Accuracy

±0.25%

Fabrika Tedarik Süresi

10 Weeks

RoHS Durumu

RoHS Compliant

Kılıf / Paket

8-DIP (0.524, 13.30mm), Side Port

Operating Pressure

30PSI (206.84kPa)

Özellikler

Amplified Output, Temperature Compensated

Terminal Stili

PC Pin

Output

0.5 V ~ 4.5 V

Nominal Supply Current

3mA

Response Time

1000 μs

Yayın Yılı

2011

Seri

TruStability® HSC

Nem Hassasiyeti (MSL)

1 (Unlimited)

Port Size

Male - 0.08 1.93mm Tube

Applications

Board Mount

Parça Durumu

Active

Pressure Type

Absolute
