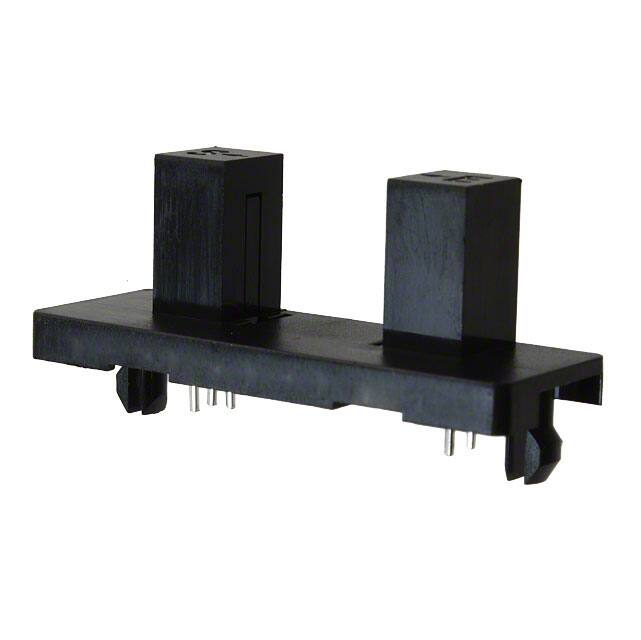

HOA2006-001

Teknik Özellikler

Power Dissipation

100mW

Rise Time

60ns

Forward Voltage

1.7V

Output Voltage

2.4V

Özellikler

Digital Output

Min. Çalışma Sıcaklığı

-40°C

Parça Durumu

Obsolete

Housing Material

Polycarbonate

Operating Supply Voltage

12V

Pin Sayısı

5

Nominal Supply Current

20mA

Output Configuration

NPN - Open Collector

Algılama Mesafesi

0.472 (12mm)

Sensing Light

Infrared

Reverse Breakdown Voltage

3V

Sensing Object

Kodak® Gray Card, White Paper

Montaj Tipi

Through Hole

Number Of Channels

1

Reverse Voltage Dc

3V

Sensing Method

Reflective

Propagation Delay

5 μs

Forward Current

50mA

Input Current

20mA

Fabrika Tedarik Süresi

14 Weeks

Kılıf / Paket

Module, PC Pins, Slot Type

Operating Supply Current

20mA

Reach Svhc

Unknown

Maks. Çalışma Sıcaklığı

70°C

Ambalaj

Bulk

Besleme Gerilimi

5V

Max Supply Voltage Dc

12V

Fall Time Typ

15 ns

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

RoHS Compliant

Min Supply Voltage Dc

4.5V

Montaj

Snap in, Through Hole

Yayın Yılı

2012

Output Circuit Type

Schmitt Trigger
