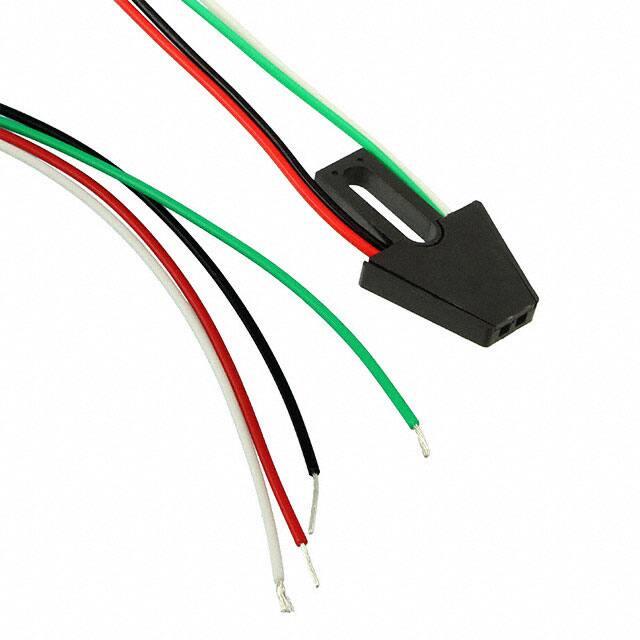

HOA1406-003

Teknik Özellikler

Sensing Method

Reflective

Reverse Voltage Dc

3V

Voltage Collector Emitter Breakdown Max

15V

Number Of Channels

1

Montaj Tipi

Chassis Mount

Reverse Breakdown Voltage

3V

Algılama Mesafesi

0.120 (3.05mm)

Pin Sayısı

4

Collector Emitter Voltage Vceo

15V

Housing Material

Polycarbonate

Terminal

Lead Wire

Parça Durumu

Obsolete

Max Collector Current

30mA

Min. Çalışma Sıcaklığı

-40°C

Çıkış Tipi

Photodarlington

Material

Polycarbonate

Output Voltage

15V

Rise Time

75μs

Çalışma Sıcaklığı

-40°C~100°C

Forward Voltage

1.6V

Power Dissipation

75mW

Current Dc Forward If Max

50mA

Collectoremitter Breakdown Voltage

15V

Touchscreen

Infrared (IR)

Voltage Rated Dc

15V

Yayın Yılı

1997

Montaj

Chassis Mount, Screw

RoHS Durumu

RoHS Compliant

Dark Current

250nA

Max Breakdown Voltage

15V

Number Of Elements

1

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fall Time Typ

75 μs

Response Time

15μs, 15μs

Maks. Çalışma Sıcaklığı

100°C

Ambalaj

Bulk

Currentcollector Ic Max

30mA

Collectoremitter Saturation Voltage

1.1V

Kılıf / Paket

Module, Pre-Wired

Fabrika Tedarik Süresi

4 Weeks
