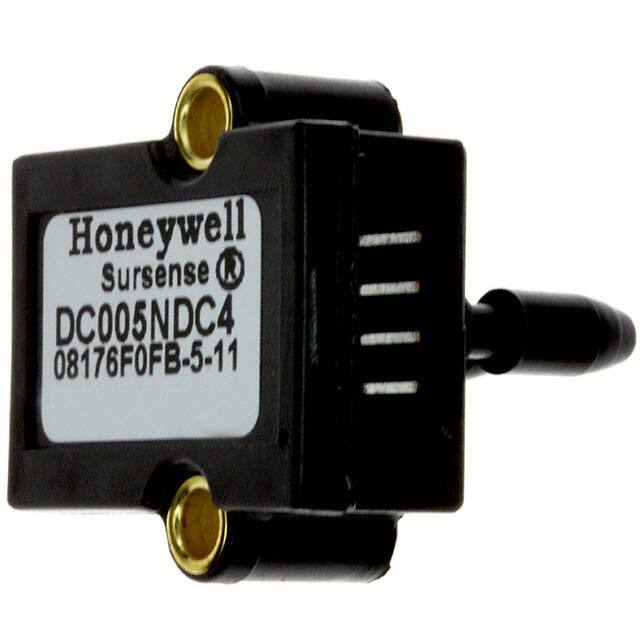

DC005NDC4

Teknik Özellikler

Voltage Rated Dc

30V

Max Supply Current

4mA

Accuracy

±0.25%

Output Voltage

4.25V

Operating Pressure

0.18PSI (1.25kPa)

Operating Supply Current

8mA

Nem Hassasiyeti (MSL)

1 (Unlimited)

Applications

Board Mount

RoHS Durumu

RoHS Compliant

Kurşunsuz

Lead Free

Parça Durumu

Obsolete

Offsetnom

2.25V

Çalışma Sıcaklığı

-25°C~85°C

Terminal

PCB

Seri

DC

Body Breadth

12.95 mm

Pin Sayısı

4

Pressure Rangemax

0.181 Psi

Montaj

PCB, Through Hole

Supply Voltagemax Vsup

16V

Kılıf / Paket

4-SIP Module

Çıkış Tipi

Analog Voltage

Output

0.25 V ~ 4.25 V

Özellikler

Temperature Compensated

Yayın Yılı

2004

Kurşunsuz Kodu

yes

Genişlik

27.4mm

Additional Feature

SENSITIVITY IS 5 MILLI VOLT

Port Style

Barbed

Body Length Or Diameter

21.59mm

Nominal Supply Current

4mA

Reach Svhc

No SVHC

Sensorstransducers Type

PRESSURE SENSOR,PEIZORESISTIVE

Maximum Pressure

5.42PSI (37.38kPa)

Pressure Type

Differential

Operating Supply Voltage

5V

Linearity

0.05 %

Nominal Gerilim

5V

Terminal Stili

PC Pin

Port Size

Male - 0.19 4.83mm Tube Dual
