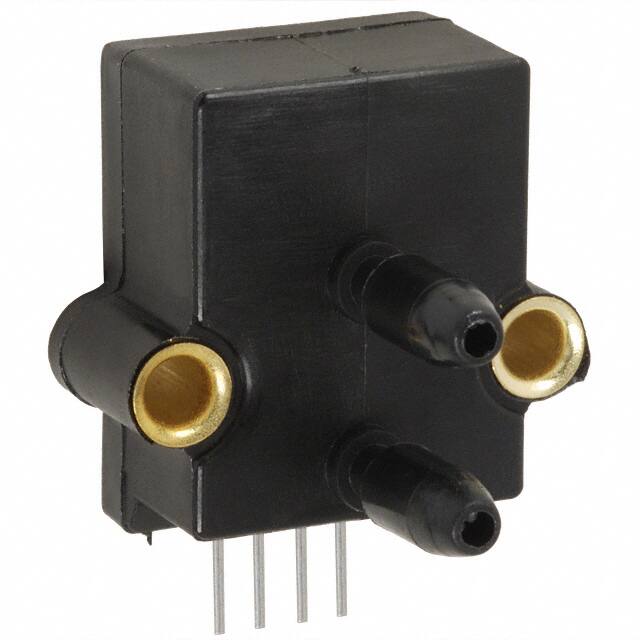

DC002NDC4

Teknik Özellikler

Sensorstransducers Type

PRESSURE SENSOR,PEIZORESISTIVE

Additional Feature

SENSITIVITY IS 10 MILLI VOLT

Port Style

Barbed

Body Length Or Diameter

21.59mm

Operating Supply Voltage

5V

Port Size

Male - 0.19 4.83mm Tube Dual

Terminal Stili

PC Pin

Pressure Type

Differential

Maximum Pressure

3.61PSI (24.92kPa)

Çıkış Tipi

Analog Voltage

Kılıf / Paket

4-SIP Module

Özellikler

Temperature Compensated

Yayın Yılı

2004

Kurşunsuz Kodu

yes

Output

0.25 V ~ 4.25 V

Terminal

PCB

Seri

DC

Çalışma Sıcaklığı

-25°C~85°C

Montaj

Through Hole

Supply Voltagemax Vsup

16V

Body Breadth

12.95 mm

Pin Sayısı

4

Pressure Rangemax

0.072 Psi

Operating Pressure

0.07PSI (0.5kPa)

Operating Supply Current

4mA

Nem Hassasiyeti (MSL)

1 (Unlimited)

Applications

Board Mount

Max Supply Current

4mA

Voltage Rated Dc

30V

Accuracy

±0.25%

Output Voltage

4.25V

Offsetnom

2.25V

RoHS Durumu

RoHS Compliant

Kurşunsuz

Lead Free

Parça Durumu

Obsolete
