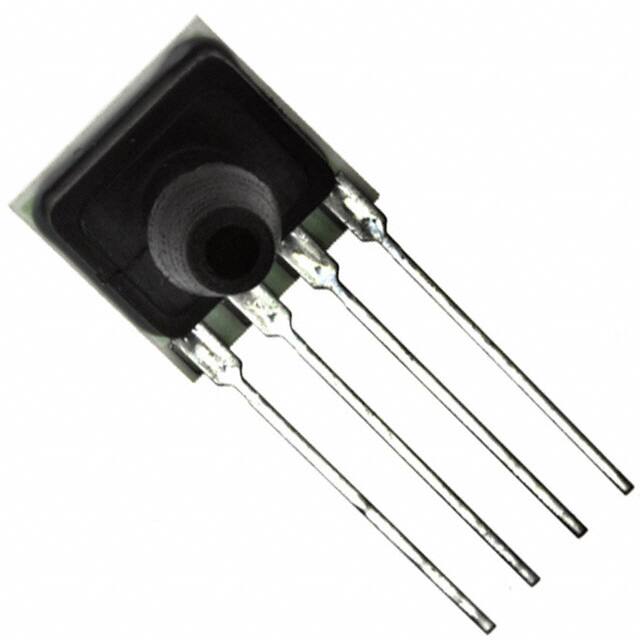

CPX15AF

Teknik Özellikler

Operating Supply Voltage

12V

Offsetnom

0MV

Maximum Pressure

45PSI (310.26kPa)

Output

0 mV ~ 253 mV (5V)

Port Size

Male - 0.15 3.8mm Tube

Output Voltage

338mV

Pressure Rangemax

15 Psi

Çıkış Tipi

Wheatstone Bridge

Accuracy

±2%

Operating Pressure

15PSI (103.42kPa)

Max Supply Voltage Dc

16V

Port Style

Barbed

Kurşunsuz

Lead Free

Yayın Yılı

2007

Pressure Type

Absolute

Çalışma Sıcaklığı

-25°C~85°C

Pin Sayısı

4

Montaj

PCB

Linearity

0.25 %

Sensorstransducers Type

PRESSURE SENSOR,PEIZORESISTIVE

Body Height

9.9mm

Body Length Or Diameter

9.9mm

Parça Durumu

Obsolete

Nem Hassasiyeti (MSL)

1 (Unlimited)

Min Supply Voltage Dc

3V

Terminal Stili

PC Pin

REACH Uyumluluk Kodu

unknown

Body Breadth

2.7 mm

Kılıf / Paket

4-SIP Module

Besleme Gerilimi

3V~12V

Max Pressure

45 PSI

Seri

CPX

Kurşunsuz Kodu

yes

RoHS Durumu

RoHS Compliant

Applications

Board Mount
