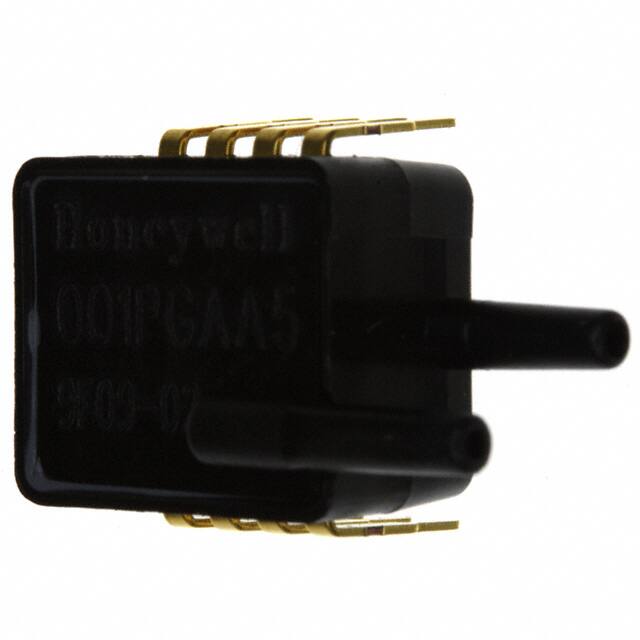

ASDXRRX001PGAA5

Teknik Özellikler

Applications

Board Mount

Response Time

1 ms

Max Pressure

2 PSI

Besleme Gerilimi

4.75V~5.25V

Terminal

PCB

Kılıf / Paket

8-DIP Module

Additional Feature

RATIOMETRIC 12-BIT ANALOG OUTPUT

Port Size

Male - 0.09 2.31mm Tube Dual

Pressure Sensing Mode

GAGE

Çalışma Sıcaklığı

-20°C~105°C

Sensorstransducers Type

PRESSURE SENSOR,STRAIN GUAGE

Number Of Bits

12

Nem Hassasiyeti (MSL)

1 (Unlimited)

Operating Pressure

1PSI (6.89kPa)

Pressure Type

Vented Gauge

Accuracy

±2%

Fabrika Tedarik Süresi

7 Weeks

Montaj

PCB, Through Hole

Yayın Yılı

2008

Parça Durumu

Active

Port Style

Barbless

Body Breadth

14.02 mm

Seri

ASDX

Maximum Pressure

2PSI (13.79kPa)

Voltage Rated Dc

5V

Özellikler

Temperature Compensated

Max Supply Current

3.5mA

Terminal Stili

PC Pin

Output

0.5 V ~ 4.5 V

Reach Svhc

No SVHC

Nominal Supply Current

2.5mA

Operating Supply Voltage

5V

RoHS Durumu

RoHS Compliant

Pin Sayısı

8

Nominal Gerilim

5V

Çıkış Tipi

Analog Voltage
