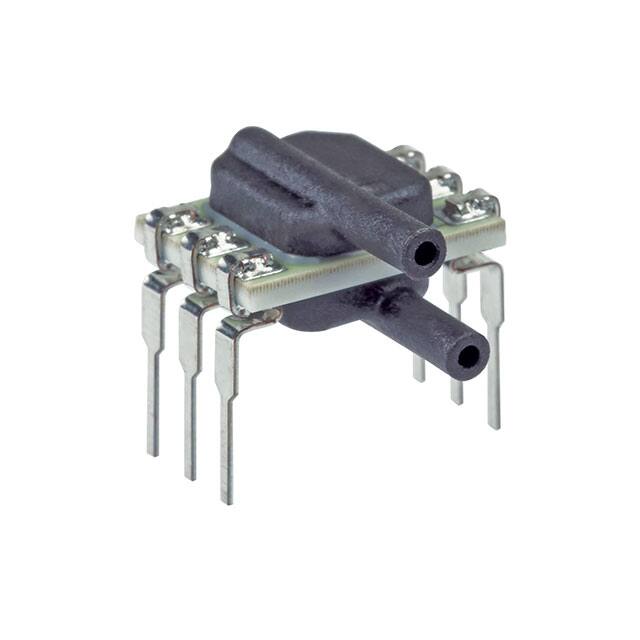

ABPDJJT001PGAA5

Teknik Özellikler

Seri

ABP

Kurşunsuz Kodu

yes

Nominal Supply Current

5mA

Operating Pressure

1PSI (6.89kPa)

Özellikler

Amplified Output, Temperature Compensated

Çalışma Sıcaklığı

-40°C~85°C

Kılıf / Paket

6-DIP Module

Applications

Board Mount

Parça Durumu

Active

Accuracy

±0.25%

Voltage Rated Dc

5V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çıkış Tipi

Analog Voltage

Yayın Yılı

2015

Reach Svhc

Unknown

Port Style

Barbless

Port Size

Male - 0.07 1.88mm Tube Dual

Fabrika Tedarik Süresi

10 Weeks

Output

0.5 V ~ 4.5 V

Terminal Stili

PC Pin

Maximum Pressure

10PSI (68.95kPa)

RoHS Durumu

RoHS Compliant

Pressure Type

Vented Gauge

Response Time

1 ms

Sensorstransducers Type

PRESSURE SENSOR,PEIZORESISTIVE
