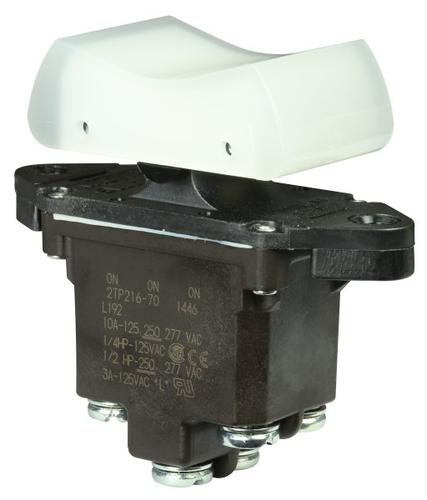

2TP216-70

Teknik Özellikler

Switch Type

ROCKER SWITCH

Actuator Marking

No Marking

Seri

TP

Body Height

34.29mm

HTS Kodu

8536.50.90.40

Akım Değeri

10A

Current Rating Amps

10A AC

Terminal

Screw

Circuit

DPDT

Max Voltage Rating Ac

277V

Parça Durumu

Active

Özellikler

Sealed

RoHS Durumu

RoHS Compliant

Contact Materials

Cadmium, Silver

Body Length Or Diameter

55.12mm

Actuator Type

Concave (Curved)

Body Breadth

22.61 mm

Panel Cutout Dimensions

Rectangular - 38.40mm x 23.90mm

Sealing

DUST PROOF; WATER PROOF

Switch Function

Mom-On-Mom

Fabrika Tedarik Süresi

17 Weeks

ECCN Kodu

EAR99

Max Voltage Rating Dc

250V

Actuator Material

Plastic

Montaj Tipi

Panel Mount, Flange

Kurşunsuz Kodu

yes

Terminal Stili

Screw Terminal

Çalışma Sıcaklığı

-54°C~71°C

Illumination Type

Illuminated

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Plating

Cadmium, Silver

Ambalaj

Bulk

Voltage Rated Ac

125V

Weight

58.97g

Montaj

Panel

Contact Ac Max Rating R Load

10A@277VAC

Orientation

Straight

Contact Current Rating

10A

Color Actuatorcap

White
