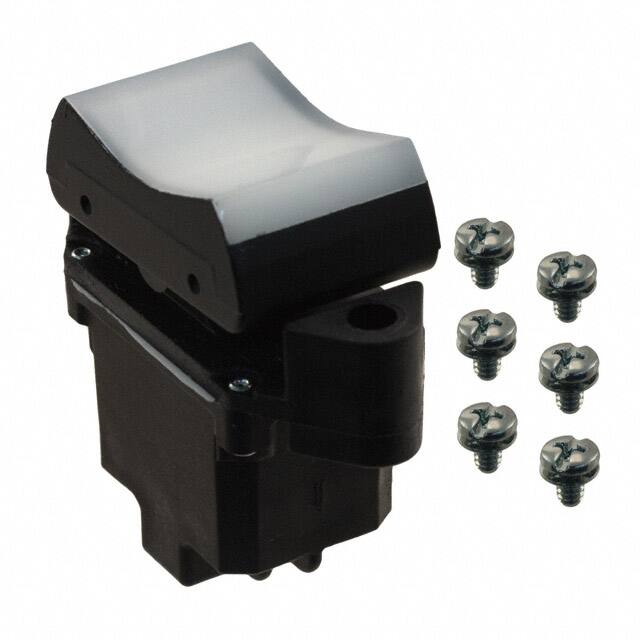

2TP1-7

Teknik Özellikler

Color Actuatorcap

White

Orientation

Straight

Weight

63.5g

Montaj

Flush, Panel

Contact Ac Max Rating R Load

10A@277VAC

Uzunluk

55.12mm

Ambalaj

Bulk

Voltage Rated Ac

125V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pin Sayısı

3

Contact Plating

Cadmium, Silver

Çalışma Sıcaklığı

-54°C~71°C

Terminal Stili

Screw Terminal

Illumination Type

Illuminated

Kurşunsuz Kodu

yes

Max Voltage Rating Dc

250V

Actuator Material

Plastic

ECCN Kodu

EAR99

Montaj Tipi

Panel Mount, Flange

Switch Function

Mom-Off-Mom

Sealing

DUST PROOF; WATER PROOF

Fabrika Tedarik Süresi

14 Weeks

Panel Cutout Dimensions

Rectangular - 38.40mm x 23.90mm

Actuator Type

Concave (Curved)

Contact Function

(ON)-OFF-(ON)

Max Voltage Rating Ac

277V

Parça Durumu

Active

Contact Materials

Cadmium, Silver

RoHS Durumu

RoHS Compliant

Özellikler

Sealed

Terminal

Screw

Current Rating Amps

10A AC

Circuit

DPDT

Max Current Rating

10A

Akım Değeri

10A

Actuator Marking

No Marking

Switch Type

ROCKER SWITCH

Seri

TP

Depth

22.61mm

Contact Ac Max Power Rating R Load

0.5HP@250VAC
