Adet bazlı fiyat
- 1+ adet$12.94
- 10+ adet$12.21
- 100+ adet$11.52
- 500+ adet$10.86
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Contact Materials
- Gold
- Current Rating Amps
- 1A AC/DC
- Yükseklik
- 12.7mm
- ECCN Kodu
- EAR99
- Yayın Yılı
- 1995
- Fabrika Tedarik Süresi
- 4 Weeks
- Differential Travel
- 0.005 (0.12mm)
- Contact Current Rating
- 1A
- Voltage Rated Dc
- 30V
- Parça Durumu
- Active
- Montaj Tipi
- Chassis Mount
- Operating Force
- 141gf
- Terminal
- Solder
- Seri
- SX
- Montaj
- Chassis Mount, Screw, Solder
- Housing Material
- Phenolic

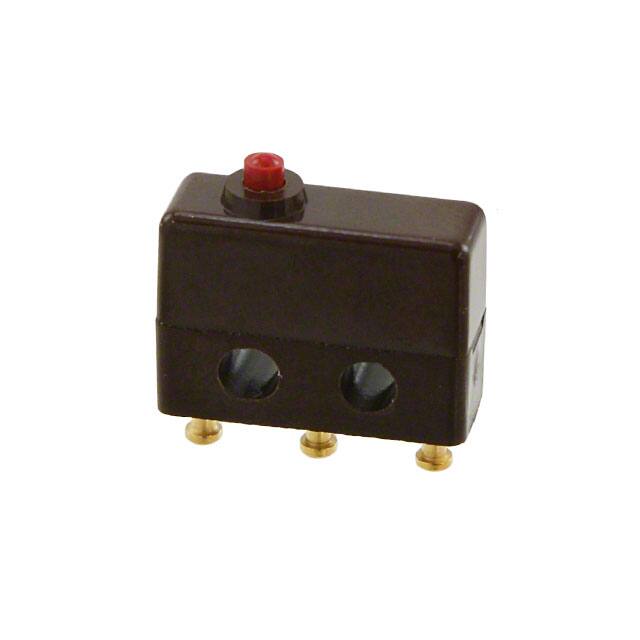

- Switch Type
- SNAP ACTING/LIMIT SWITCH
- Actuator Material
- Plastic
- Depth
- 5.08mm
- Contact Dc Max Rating R Load
- 1A@30VDC
- Voltage Rated Ac
- 125V
- Contact Currentdcmax
- 1A
- Operating Position
- 0.320 (8.13mm)
- Kurşunsuz Kodu
- yes
- Ambalaj
- Bulk
- Max Voltage Rating Dc
- 30V
- Overtravel
- 0.004 (0.1mm)
- Switch Function
- On-Mom
- RoHS Durumu
- RoHS Compliant
- Genişlik
- 6.35mm
- Max Current Rating
- 1A
- Reach Svhc
- No SVHC
- Terminal Stili
- Solder Turret
- Pretravel
- 0.020 (0.5mm)
- Akım Değeri
- 1A
- Weight
- 136g
- HTS Kodu
- 8536.50.70.00
- Orientation
- Straight
- Uzunluk
- 12.7mm
- Actuator Type
- Round (Pin Plunger)
