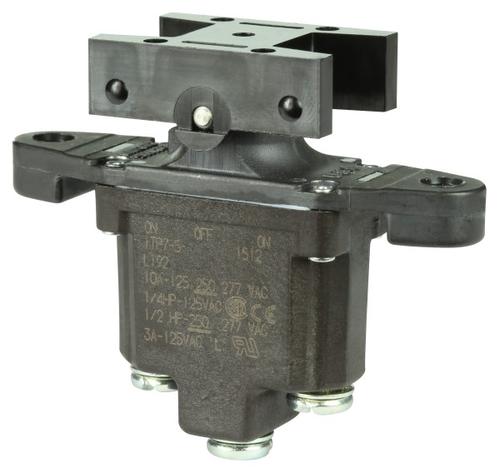

1TP7-5

Teknik Özellikler

Illumination Type

Illuminated

Voltage Rated Ac

125V

Yayın Yılı

2008

Panel Cutout Dimensions

Rectangular - 38.40mm x 23.90mm

Depth

19.56mm

Contact Materials

Cadmium, Silver

RoHS Durumu

RoHS Compliant

Akım Değeri

10A

Actuator Type

Actuator Arm, Cap Required

Terminal

Screw

Current Rating Amps

10A AC

Actuator Material

Plastic

Orientation

Straight

Switch Function

On-Off-Mom

Çalışma Sıcaklığı

-54°C~71°C

Max Voltage Rating Dc

250V

Weight

40.82g

Montaj Tipi

Panel Mount, Flange

Montaj

Panel

Seri

TP

Ambalaj

Bulk

HTS Kodu

8536.50.90.40

Sealing

DUST PROOF; WATER PROOF

Özellikler

Sealed

Parça Durumu

Active

Actuator Marking

Varies by Cap

Terminal Stili

Screw Terminal

Contact Plating

Cadmium, Silver

ECCN Kodu

EAR99

Max Current Rating

15A

Body Height

29.46mm

Contact Ac Max Rating R Load

10A@277VAC

Nem Hassasiyeti (MSL)

1 (Unlimited)

Circuit

SPDT

Kurşunsuz Kodu

yes

REACH Uyumluluk Kodu

unknown

Switch Type

ROCKER SWITCH

Fabrika Tedarik Süresi

17 Weeks

Uzunluk

55.12mm

Max Voltage Rating Ac

277V
