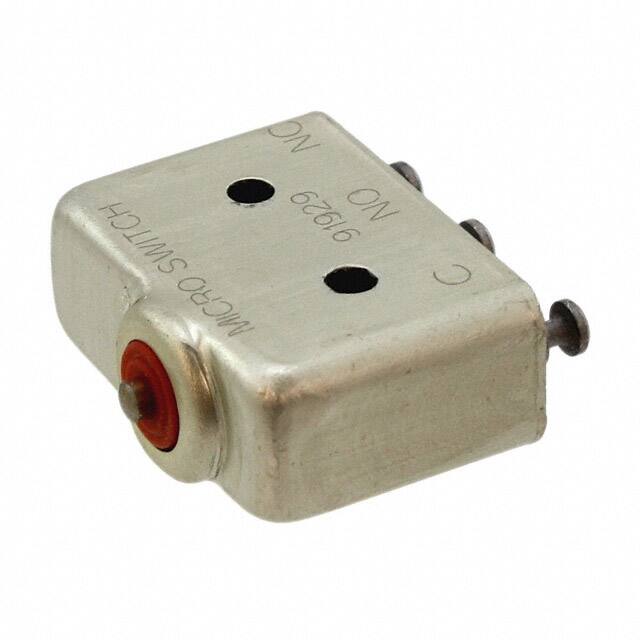

1SE1-T

Teknik Özellikler

HTS Kodu

8536.50.70.00

Contact Currentacmax

5A

Terminal Stili

Solder Turret

Depth

8.79mm

Seri

SE

Actuator Type

Round (Pin Plunger)

Akım Değeri

5A

Max Voltage Rating Dc

30V

Body Height

15.24mm

Yayın Yılı

2010

Overtravel

0.003 (0.076mm)

ECCN Kodu

EAR99

Uzunluk

22.25mm

Fabrika Tedarik Süresi

10 Weeks

Actuator Material

Steel

Terminal

Solder

Contact Current Rating

5A

Pretravelmax

1.27 mm

Sealing

CORROSION PROOF

Current Rating Amps

5A AC/DC

Ambalaj

Bulk

Montaj

Chassis Mount, Screw, Solder

Nem Hassasiyeti (MSL)

1 (Unlimited)

Voltage Rated Dc

30V

Contact Dc Max Rating R Load

5A@30VDC

Reach Svhc

Unknown

Contact Ac Max Rating R Load

5A@250VAC

Differential Travel

0.004 (0.1mm)

Weight

7.37g

Çalışma Sıcaklığı

-54°C~105°C

Circuit

SPDT

Voltage Rated Ac

250V

Max Current Rating

5A

Montaj Tipi

Chassis Mount

Release Force

113gf

Operating Position

0.425 (10.8mm)

Switch Function

On-Mom

Ingress Protection

Waterproof

Orientation

Straight

Contact Materials

Silver
