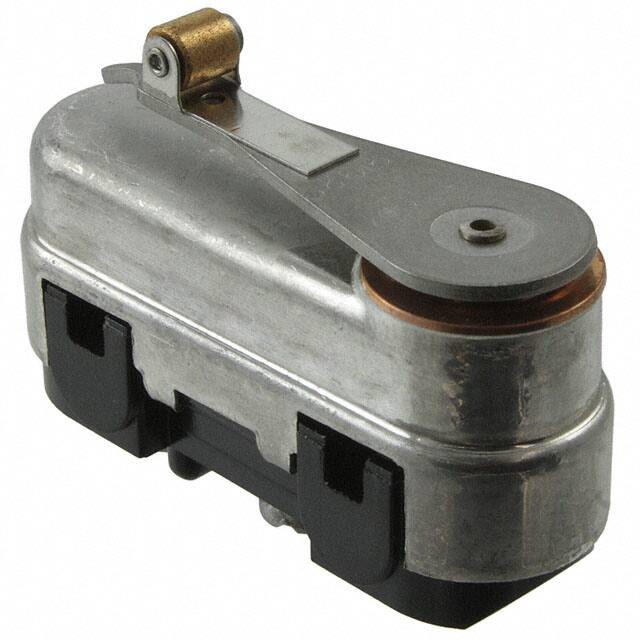

1HS3

Teknik Özellikler

Ambalaj

Bulk

Terminal

Screw

Orientation

Straight

Pretravelmax

1.65 mm

Differential Travel

0.020 (0.5mm)

Weight

45.36g

Reach Svhc

Unknown

Operating Force

283 ~ 624gf

Montaj Tipi

Chassis Mount

Seri

HS

Sealing

CORROSION PROOF

Voltage Rated Ac

115V

Yayın Yılı

1995

Çalışma Sıcaklığı

-55°C~125°C

Actuator Travel

1.9 mm

Terminal Stili

Screw Terminal

Actuator Type

Lever, Roller

Circuit

SPDT

Max Voltage Rating Dc

28V

Contact Current Rating

25A

Özellikler

Sealed - Hermetically

Pretravel

0.065 (1.65mm)

Operating Position

0.720 (18.3mm)

RoHS Durumu

Non-RoHS Compliant

Current Rating Amps

1A AC 25A DC

ECCN Kodu

EAR99

Switch Type

SNAP ACTING/LIMIT SWITCH

Parça Durumu

Active

Release Force

113gf

Uzunluk

49.78mm

Contact Currentacmax

0.5A

Depth

17.45mm

Fabrika Tedarik Süresi

5 Weeks

Pozisyon Sayısı

2

Voltage Rated Dc

28V

HTS Kodu

8536.50.90.40

Nem Hassasiyeti (MSL)

1 (Unlimited)

Overtravel

0.010 (0.25mm)

Switch Function

On-Mom

Max Voltage Rating Ac

125V
