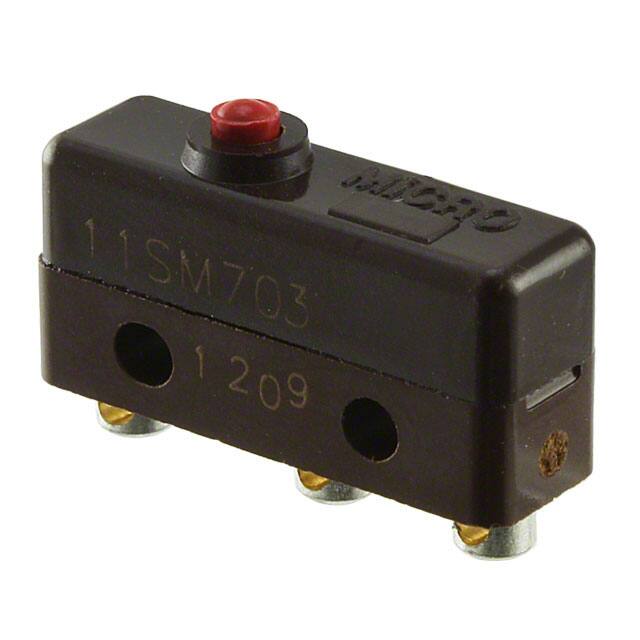

11SM703

Teknik Özellikler

Weight

272g

Terminal Stili

Solder Lug

Contact Currentdcmax

4A

Yayın Yılı

1995

Parça Durumu

Active

Mechanical Life

10,000,000 Cycles

Switch Type

SNAP ACTING/LIMIT SWITCH

Max Voltage Rating Dc

30V

ECCN Kodu

EAR99

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Bulk

Fabrika Tedarik Süresi

6 Weeks

Current Rating Amps

4A AC 5A DC

Contact Dc Max Rating R Load

4A@30VDC

Kurşunsuz Kodu

yes

Montaj

Chassis Mount, Screw, Solder

Voltage Rated Dc

30V

HTS Kodu

8536.50.70.00

REACH Uyumluluk Kodu

unknown

Montaj Tipi

Chassis Mount

Switch Function

On-Mom

Seri

SM

Actuator Type

Round (Pin Plunger)

Operating Force

56gf

Actuator Travel

0.63 mm

Akım Değeri

5A

Body Length Or Diameter

19.84mm

Operating Position

0.330 (8.4mm)

Housing Material

Phenolic

Terminal

Solder

Release Force

14gf

Body Breadth

6.35 mm

Differential Travel

0.002 (0.05mm)

Pretravelmax

0.5 mm

Pretravel

0.020 (0.5mm)

Çalışma Sıcaklığı

-55°C~125°C

Overtravel

0.005 (0.13mm)

RoHS Durumu

RoHS Compliant

Orientation

Straight

Body Height

9.04mm
