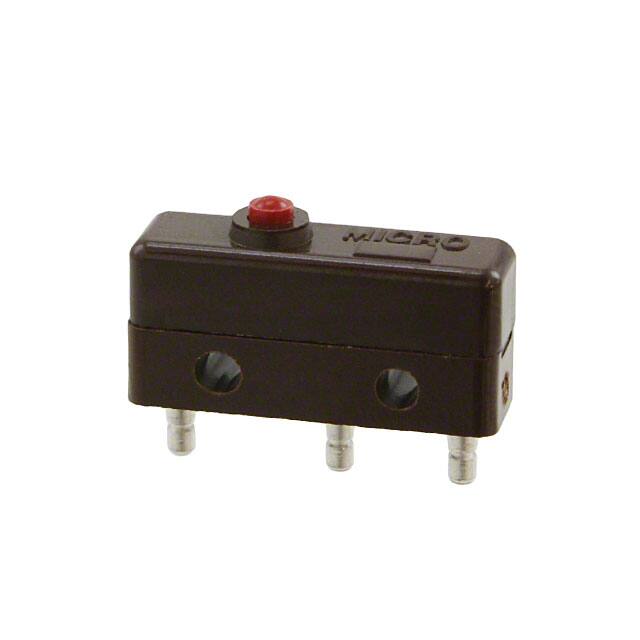

11SM1-H58

Teknik Özellikler

Current Rating Amps

5A AC/DC

Montaj

Chassis Mount, Screw, Solder

Kurşunsuz Kodu

yes

Contact Dc Max Rating R Load

5A@30VDC

Depth

6.35mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

ECCN Kodu

EAR99

Max Voltage Rating Dc

30V

Switch Type

SNAP ACTING/LIMIT SWITCH

Parça Durumu

Active

Mechanical Life

10,000,000 Cycles

Fabrika Tedarik Süresi

10 Weeks

Ambalaj

Bulk

Seri

SM

Switch Function

On-Mom

Actuator Material

Plastic

Actuator Type

Round (Pin Plunger)

HTS Kodu

8536.50.70.00

Voltage Rated Dc

30V

Montaj Tipi

Chassis Mount

Terminal Stili

Quick Connect - 0.058 (Round)

Reach Svhc

No SVHC

Weight

272g

Yayın Yılı

1995

Uzunluk

19.84mm

Contact Currentdcmax

5A

Çalışma Sıcaklığı

-55°C~125°C

Release Force

28gf

Terminal

Quick Connect

Pretravel

0.020 (0.5mm)

Pretravelmax

0.51 mm

Differential Travel

0.004 (0.1mm)

Contact Currentacmax

5A

Voltage Rated Ac

250V

Circuit

SPDT

Contact Ac Max Rating R Load

5A@250VAC

Contact Materials

Silver

Overtravel

0.005 (0.13mm)

RoHS Durumu

RoHS Compliant

Max Voltage Rating Ac

250V
