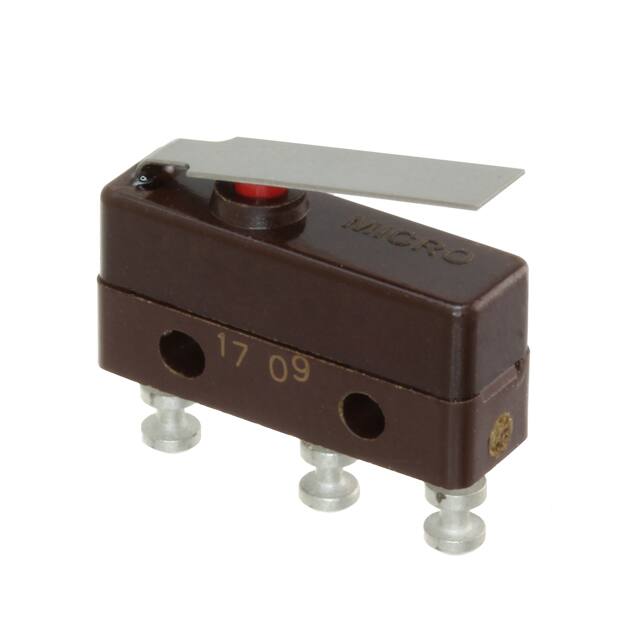

111SM1-T2

Teknik Özellikler

Body Height

9.0424mm

Pretravel

0.218 (5.5mm)

ECCN Kodu

EAR99

Operating Position

0.350 (8.9mm)

Voltage Rated Dc

30V

Switch Type

SNAP ACTING/LIMIT SWITCH

Max Voltage Rating Dc

30V

Orientation

Straight

Reach Svhc

Unknown

Contact Ac Max Rating R Load

5A@250VAC

Parça Durumu

Active

Fabrika Tedarik Süresi

6 Weeks

Weight

2.72g

Ambalaj

Bulk

Akım Değeri

5A

Overtravel

0.030 (0.76mm)

Body Breadth

6.35 mm

Actuator Travel

5.588 mm

Yayın Yılı

2008

Nem Hassasiyeti (MSL)

1 (Unlimited)

Seri

SM

Differential Travel

0.030 (0.76mm)

Operating Force

198gf

Body Length Or Diameter

19.8374mm

Release Force

57gf

Mechanical Life

10,000,000 Cycles

Length Termination

0.186 inch

Montaj Tipi

Chassis Mount

RoHS Durumu

RoHS Compliant

Voltage Rated Ac

250V

Contact Timing

SNAP ACTION

Current Rating Amps

5A AC/DC

Terminal

Solder

Actuator Type

Lever, Straight

Montaj

Chassis Mount, Panel, Screw, Solder

Circuit

SPDT

Çalışma Sıcaklığı

-55°C~125°C

Actuator Length

0.19 inch

Terminal Stili

Solder Turret

Contact Current Rating

5A
