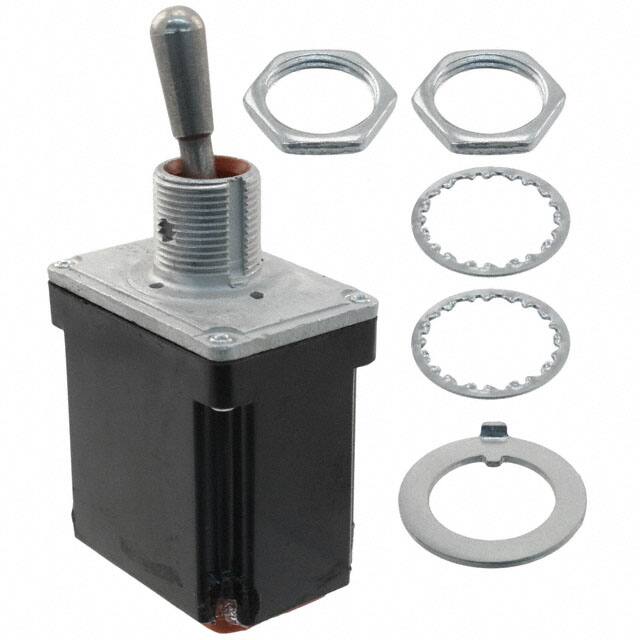

102TL2-8

Teknik Özellikler

Actuator Length

17.27mm

Pin Sayısı

2

Parça Durumu

Active

Yayın Yılı

2009

Fabrika Tedarik Süresi

9 Weeks

Akım Değeri

7.5A

HTS Kodu

8536.50.90.40

Max Voltage Rating Ac

230V

Orientation

Straight

Voltage Rated Dc

30V

Terminal Stili

IWTS

Body Length Or Diameter

33.53mm

ECCN Kodu

EAR99

Body Height

37.34mm

Contact Materials

Cadmium, Silver

Ratings

Environment Proof

Current Rating Amps

7.5A AC/DC

Bushing Thread

15/32-32

Contact Ac Max Rating R Load

7.5A@115VAC

RoHS Durumu

RoHS Compliant

Voltage Rated Ac

115V

Ingress Protection

Environment Sealed

Özellikler

Sealed

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kurşunsuz Kodu

yes

Max Voltage Rating Dc

250V

Ambalaj

Bulk

Switch Function

On-Mom

Çalışma Sıcaklığı

-65°C~71°C

Circuit

DPDT

Switch Type

TOGGLE SWITCH

Actuator Material

Nickel Plated

Contact Plating

Cadmium, Silver

Terminal

Wire Leads

Seri

TL

Montaj

Bushing

Illumination

Non-Illuminated

Actuator Type

Standard Round

Montaj Tipi

Panel Mount

Sealing

DUST PROOF; WATER PROOF
