Adet bazlı fiyat
- 1+ adet$216.13
- 10+ adet$203.89
- 100+ adet$192.35
- 500+ adet$181.46
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Bushing Thread
- 15/32-32
- Ratings
- Environment Proof
- Current Rating Amps
- 7.5A AC/DC
- Contact Materials
- Cadmium, Silver
- Contact Ac Max Rating R Load
- 7.5A@125VAC
- RoHS Durumu
- RoHS Compliant
- Terminal Stili
- IWTS
- Body Height
- 37.34mm
- ECCN Kodu
- EAR99
- Body Length Or Diameter
- 33.53mm
- Orientation
- Straight
- Max Voltage Rating Ac
- 230V
- Weight
- 61.23g
- HTS Kodu
- 8536.50.90.65
- Yayın Yılı
- 2008
- Fabrika Tedarik Süresi
- 30 Weeks
- Akım Değeri
- 7.5A
- Voltage Rated Dc
- 30V
- Actuator Length
- 17.27mm
- Parça Durumu
- Active
- Montaj Tipi
- Panel Mount
- Illumination
- Non-Illuminated
- Actuator Type
- Standard Round
- Panel Cutout Dimensions
- Circular - 12.40mm Dia
- Sealing
- DUST PROOF; WATER PROOF
- Terminal
- Wire Leads
- Montaj
- Bushing
- Seri
- TL
- Circuit
- DPDT
- Contact Plating
- Cadmium, Silver

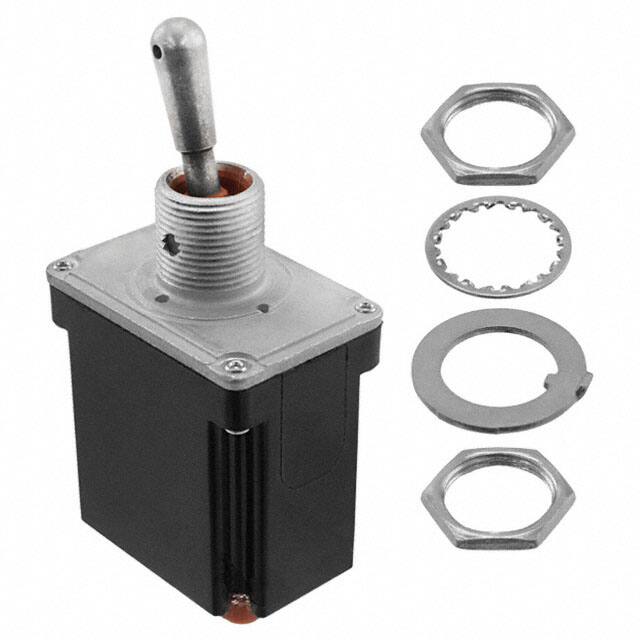

- Switch Type
- TOGGLE SWITCH
- Actuator Material
- Nickel Plated
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Body Breadth
- 22.61 mm
- Ingress Protection
- Environment Sealed
- Contact Dc Max Rating R Load
- 7.5A@28VDC
- Voltage Rated Ac
- 115V
- Çalışma Sıcaklığı
- -65°C~71°C
- Switch Function
- On-On
- Max Voltage Rating Dc
- 250V
