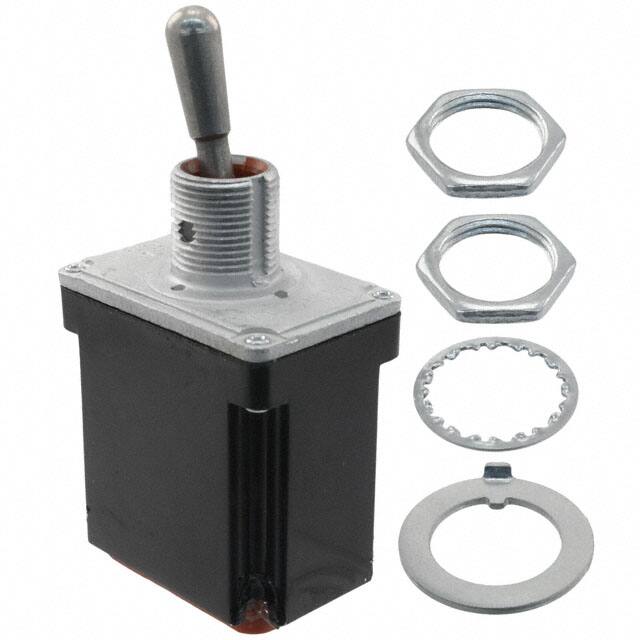

102TL2-1

Teknik Özellikler

Voltage Rated Dc

30V

Orientation

Straight

Max Voltage Rating Ac

250V

Weight

61.23g

HTS Kodu

8536.50.90.65

Akım Değeri

7.5A

Fabrika Tedarik Süresi

26 Weeks

Yayın Yılı

2009

Parça Durumu

Active

Illumination Type

Illuminated, Non-Illuminated

Actuator Length

17.27mm

Contact Ac Max Rating R Load

7.5A@115VAC

RoHS Durumu

RoHS Compliant

Bushing Thread

15/32-32

Current Rating Amps

7.5A AC/DC

Ratings

Environment Proof

Contact Materials

Cadmium, Silver

Body Height

37.34mm

ECCN Kodu

EAR99

Body Length Or Diameter

33.53mm

Terminal Stili

IWTS

Contact Plating

Cadmium, Silver

Switch Type

TOGGLE SWITCH

Actuator Material

Nickel Plated

Circuit

DPDT

Çalışma Sıcaklığı

-65°C~71°C

Switch Function

On-Off-On

Max Voltage Rating Dc

250V

Ambalaj

Bulk

Kurşunsuz Kodu

yes

Nem Hassasiyeti (MSL)

1 (Unlimited)

Body Breadth

22.61 mm

Ingress Protection

Environment Sealed

Voltage Rated Ac

115V

Panel Cutout Dimensions

Circular - 12.40mm Dia

Sealing

DUST PROOF; WATER PROOF

Montaj Tipi

Panel Mount

REACH Uyumluluk Kodu

unknown

Actuator Type

Standard Round

Illumination

Non-Illuminated
