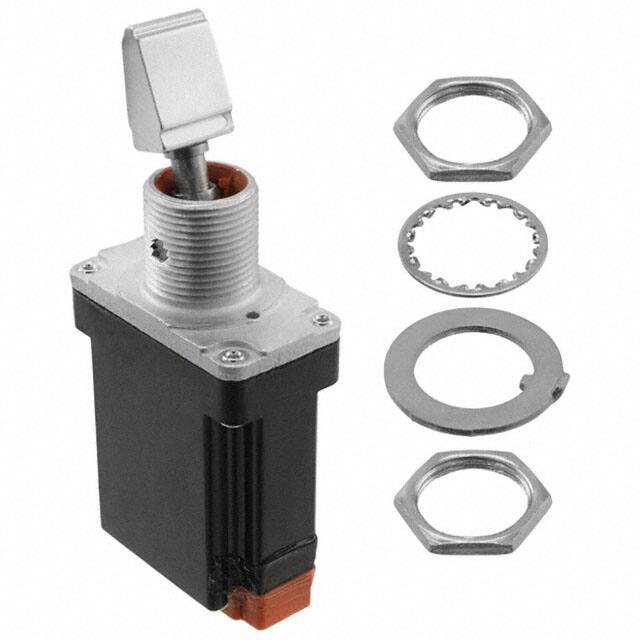

101TL2841-3

Teknik Özellikler

Voltage Rated Ac

115V

Yayın Yılı

2004

Orientation

Straight

Terminal Stili

IWTS

Actuator Length

16.51mm

Contact Currentacmax

0.1A

Voltage Rated Dc

28V

Body Length Or Diameter

28.7mm

Bushing Thread

15/32-32

Ambalaj

Bulk

Max Voltage Rating Ac

115V

Parça Durumu

Active

Contact Ac Max Rating R Load

.1A@277VAC

Illumination

Non-Illuminated

Seri

TL

Circuit

SPDT

JESD-609 Kodu

e4

Current Rating Amps

100mA AC/DC

Ratings

Environment Proof

Actuator Material

Nickel Plated

Body Breadth

15.75 mm

REACH Uyumluluk Kodu

unknown

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Wire Leads

Weight

36.29g

Akım Değeri

100mA

Actuator Type

Flatted

Contact Materials

Cadmium, Silver

Ingress Protection

Environment Sealed

Sealing

DUST PROOF; WATER PROOF

RoHS Durumu

RoHS Compliant

Switch Type

TOGGLE SWITCH

Max Voltage Rating Dc

28V

Çalışma Sıcaklığı

-65°C~71°C

Montaj

Bushing

Contact Dc Max Rating R Load

.1A@28VDC

Kurşunsuz Kodu

yes

Switch Function

On-On

Montaj Tipi

Panel Mount

Contact Currentdcmax

0.1A
