Teknik Özellikler
- Mating Information
- MULTIPLE MATING PARTS AVAILABLE
- Contact Materials
- Copper
- Orientation
- Right Angle
- Reliability
- COMMERCIAL

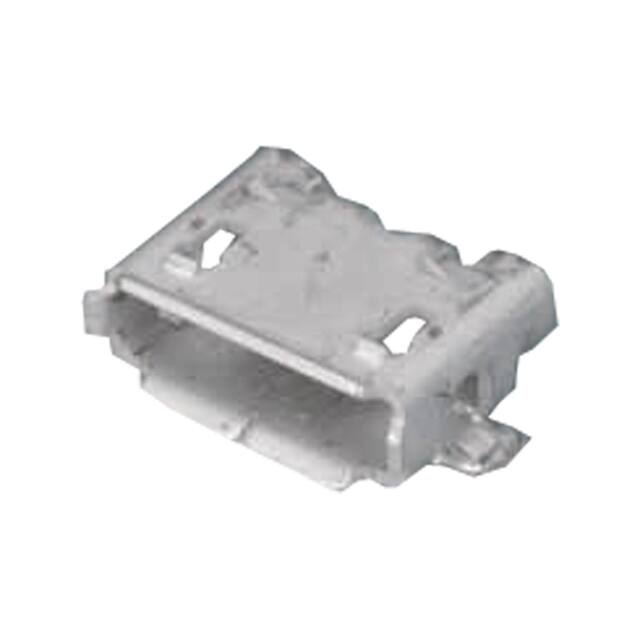

- Connector Type
- USB - micro AB
- Mounting Feature
- Bottom Mount, Horizontal
- Iec Conformance
- NO
- Yayın Yılı
- 2007
- Kurşunsuz Kodu
- yes
- ECCN Kodu
- EAR99
- Contact Finish
- Gold
- RoHS Durumu
- RoHS Compliant
- Number Of Conductors
- ONE
- Ambalaj
- Tape & Reel (TR)
- Shell Material
- STAINLESS STEEL
- Pcb Contact Pattern
- RECTANGULAR
- Parça Durumu
- Obsolete
- Gender
- Receptacle
- Çalışma Sıcaklığı
- -30°C~85°C
- Filter Feature
- NO
- Number Of Ports
- 1
- Contact Resistance
- 30mOhm
- Number Of Pcb Rows
- 1
- Empty Shell
- NO
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Mil Conformance
- NO
- Reference Standard
- UL
- Option
- GENERAL PURPOSE
- Material Flammability Rating
- UL94 V-0
- Mounting Option1
- LOCKING
- REACH Uyumluluk Kodu
- unknown
- Current Rating Amps
- 1A per Contact
- Shell Finish
- TIN
- Montaj Tipi
- Surface Mount, Right Angle; Through Hole
- Seri
- ZX
- Özellikler
- Pick and Place, Solder Retention
- Shielding
- Shielded
- Nominal Gerilim
- 30VAC
- Insulation Materials
- LIQUID CRYSTAL POLYMER
- Terminal
- Solder
