Teknik Özellikler
- Max Voltage Rating Ac
- 30V
- Voltage Rated Ac
- 30V
- Montaj Tipi
- Surface Mount, Right Angle
- Seri
- ZX
- Current Rating Amps
- 1.8A
- Terminal
- Solder
- Nominal Gerilim
- 30VAC
- Number Of Contacts
- 5
- Shellshielding Material
- Steel, Stainless
- Mounting Feature
- Bottom Mount, Horizontal
- Reliability
- COMMERCIAL
- Contact Materials
- Copper
- Pitch
- 650μm
- Ambalaj
- Tape & Reel (TR)
- Kurşunsuz
- Lead Free
- Contact Finish
- Gold
- RoHS Durumu
- RoHS Compliant
- Yayın Yılı
- 2007
- Parça Durumu
- Obsolete
- Pcb Contact Pattern
- RECTANGULAR
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Contact Resistance
- 30mOhm
- Number Of Ports
- 1
- Flammability Rating
- UL94 V-0
- Material Flammability Rating
- UL94 V-0
- Reference Standard
- UL
- Özellikler
- Pick and Place, Solder Retention
- Shielding
- Shielded
- Shell Finish
- TIN
- Depth
- 5.6mm
- Reach Svhc
- No SVHC
- Insulation Materials
- LIQUID CRYSTAL POLYMER (LCP)
- Mating Cycles
- 10000
- JESD-609 Kodu
- e4
- Insulation Color
- Black
- Specifications
- USB 2.0
- Radyasyon Dayanımı
- No

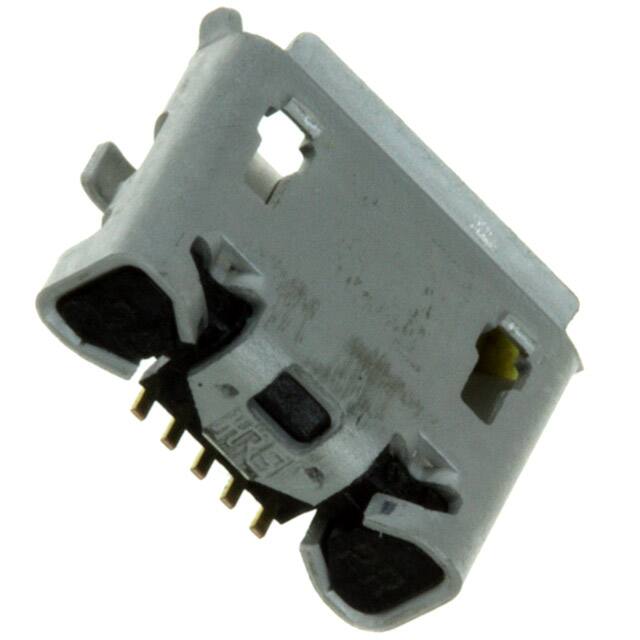

- Connector Type
- USB - micro B
- Orientation
- Right Angle
- Usb
- USB 2.0
