Adet bazlı fiyat
- 1+ adet$7.97
- 10+ adet$7.51
- 100+ adet$7.09
- 500+ adet$6.69
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Contact Resistance
- 3mOhm
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Ambalaj
- Bulk
- Mounting Feature
- Bulkhead - Rear Side Nut
- Parça Durumu
- Active
- Connector Style
- BNC
- Connector Type
- Jack, Female Socket
- Mating Cycles
- 5000
- Frequencymax
- 4GHz
- Radyasyon Dayanımı
- No
- Montaj Tipi
- Panel Mount
- Montaj
- Bulkhead, Panel, Rear Side Nut
- Empedans
- 50Ohm
- Includes

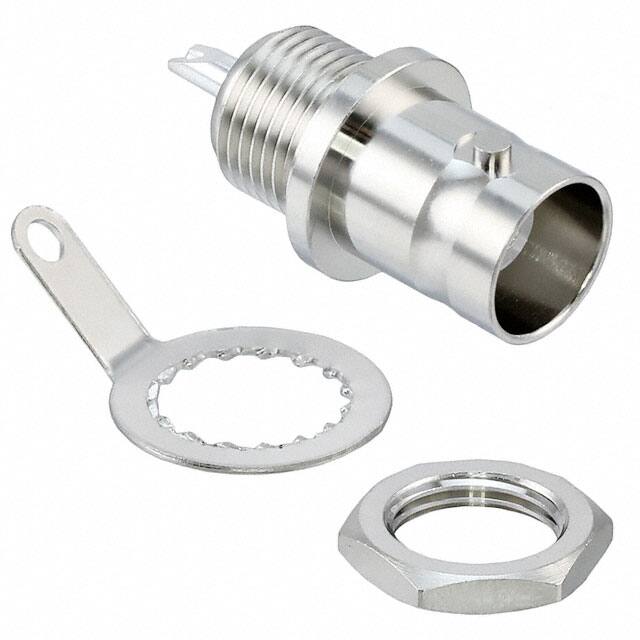

- 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
- ECCN Kodu
- EAR99
- Number Of Ports
- 1
- Contact Style
- COAX
- Çalışma Sıcaklığı
- -55°C~85°C
- Body Finish
- Nickel
- Body Material
- Brass
- Terminal
- Solder
- Fastening Type
- Bayonet Lock
- Contact Materials
- Copper
- Gender
- Female
- Vswr
- 1.2
- Contact Termination
- Solder Cup
- Yayın Yılı
- 2009
- Bodyshell Style
- RECEPTACLE
- Operating Frequency Max
- 4GHz
- Fabrika Tedarik Süresi
- 10 Weeks
- Center Contact Material
- Beryllium Copper
- Kurşunsuz
- Lead Free
- RoHS Durumu
- RoHS Compliant
- Shield Termination
- Solder Tag
- Uzunluk
- 26.3mm
- Housing Color
- Silver
- Total Number Of Contacts
- 1
- Depth
- 12.7mm
