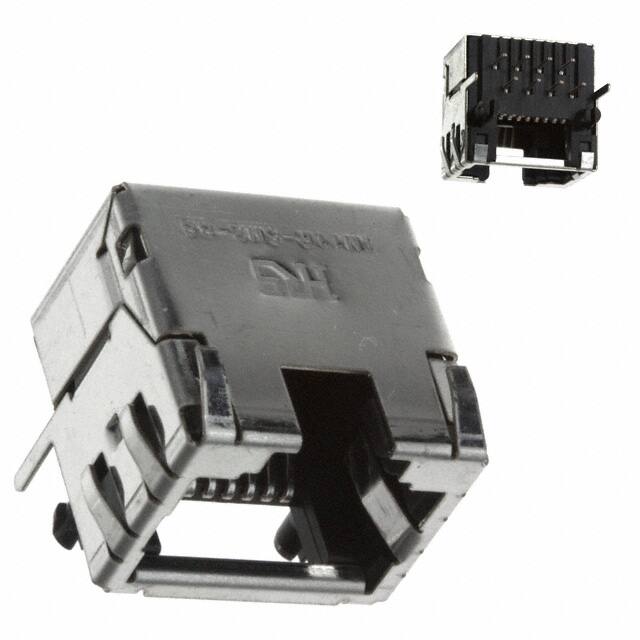

TM11R-5M2-88

Teknik Özellikler

Option

GENERAL PURPOSE

Number Of Positions Loaded

8

JESD-609 Kodu

e2

Ul Flammability Code

94V-0

Max Voltage Rating Ac

125V

Contact Resistance

230mOhm

Max Current Rating

1A

Additional Feature

EMI SHIELDED

Gender

Female

Contact Style

TELCOM, MODULAR

Reach Svhc

No SVHC

RoHS Durumu

RoHS Compliant

Tab Direction

Up

Yayın Yılı

2006

Montaj Tipi

Through Hole

Pcb Contact Pattern

STAGGERED

Ambalaj

Tray

Number Of Positionscontacts

8p8c (RJ45, Ethernet)

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

11 Weeks

Shell Finish

TIN

Nominal Gerilim

125V

Parça Durumu

Active

Filter Feature

NO

Housing Color

Black

Reference Standard

UL

Çalışma Sıcaklığı

-25°C~80°C

Mixed Contacts

NO

Total Number Of Contacts

8

Akım Değeri

1A

Orientation

90° Angle (Right)

Durability

200 Cycles

Housing Material

Polybutylene Terephthalate (PBT)

Number Of Ports

1

Nem Hassasiyeti (MSL)

1 (Unlimited)

Seri

TM11R-5M2

Terminal

Solder

Özellikler

Board Lock

Montaj

Through Hole

Kurşunsuz Kodu

yes
