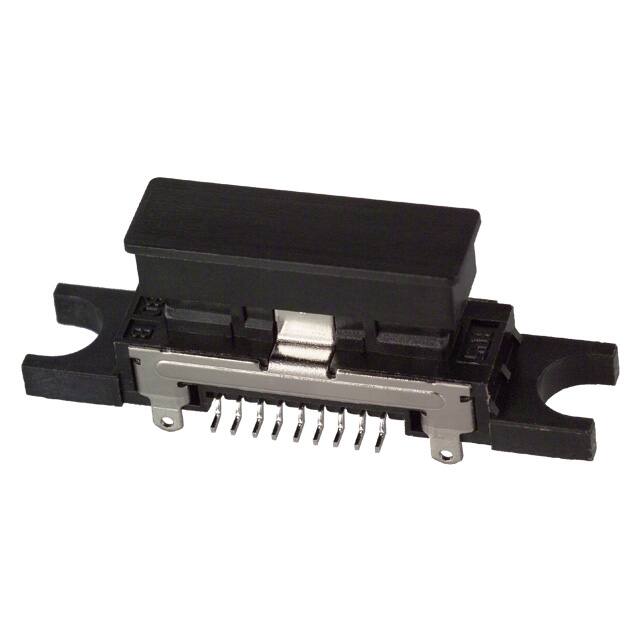

ST80X-18S(30)

Teknik Özellikler

Material Flammability Rating

UL94 V-0

Mil Conformance

NO

Ul Flammability Code

94V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fastening Type

Latch Holder

Flammability Rating

UL94 V-0

Parça Durumu

Active

Contact Finish Mating

Gold

Kurşunsuz Kodu

yes

Insulation Color

Black

Insulation Materials

Polyamide (PA), Nylon

Mixed Contacts

NO

Gender

Male

Number Of Positions Loaded

All

Montaj Tipi

Surface Mount

Contact Materials

Copper Alloy

Empty Shell

NO

Filter Feature

NO

Option

GENERAL PURPOSE

Pitch Mating

0.039 1.00mm

Reach Svhc

Unknown

Yayın Yılı

2008

Terminal

Solder

Sıra Sayısı

1

Contact Type

Non-Gendered

Connector Type

Plug, Cradle

Ambalaj

Tape & Reel (TR)

Insulation Height

0.378 9.60mm

Total Number Of Contacts

18

Voltage Rated Ac

100V

Shell Finish

TIN

Style

Board to Cable/Wire

ECCN Kodu

EAR99

Iec Conformance

NO

Montaj

Surface Mount

Akım Değeri

500mA

RoHS Durumu

RoHS Compliant

Current Rating Amps

0.5A

Özellikler

Board Guide, Mounting Flange, Shielded

Pozisyon Sayısı

18
