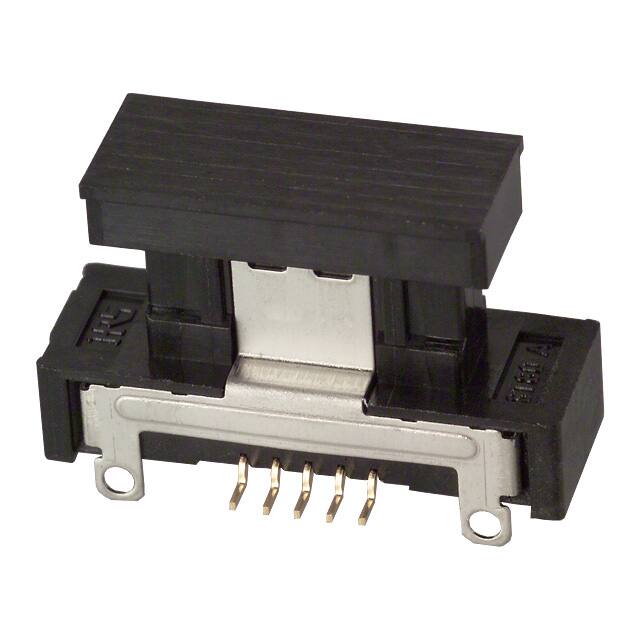

ST80X-10S

Teknik Özellikler

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Terminal

Solder

Housing Material

Thermoplastic

Empty Shell

NO

Option

GENERAL PURPOSE

Mixed Contacts

NO

Montaj Tipi

Surface Mount

Number Of Positions Loaded

All

Housing Color

Black

Terminal Adımı

0.9906mm

Mil Conformance

NO

Ul Flammability Code

94V-0

Contact Finish Mating

Gold

Pcb Contact Row Spacing

6.8072 mm

Flammability Rating

UL94 V-0

Seri

ST

Reference Standard

UL

Çalışma Sıcaklığı

-30°C~80°C

Özellikler

Board Guide, Mounting Flange, Shielded

HTS Kodu

8536.69.40.30

Iec Conformance

NO

Orientation

Straight

Number Of Conductors

ONE

ECCN Kodu

EAR99

JESD-609 Kodu

e3

Additional Feature

EMI SHIELDED, LOW PROFILE, POLARIZED

Shell Finish

TIN

Voltage Rated Ac

100V

Total Number Of Contacts

10

Dielectric Withstanding Voltage

350VAC V

Pitch Mating

0.039 1.00mm

Number Of Pcb Rows

2

Yayın Yılı

2004

Reach Svhc

No SVHC

Filter Feature

NO

Insulation Materials

Polyamide (PA), Nylon

Contact Materials

Copper Alloy

Kurşunsuz

Lead Free

Reliability

COMMERCIAL

Gender

Female
