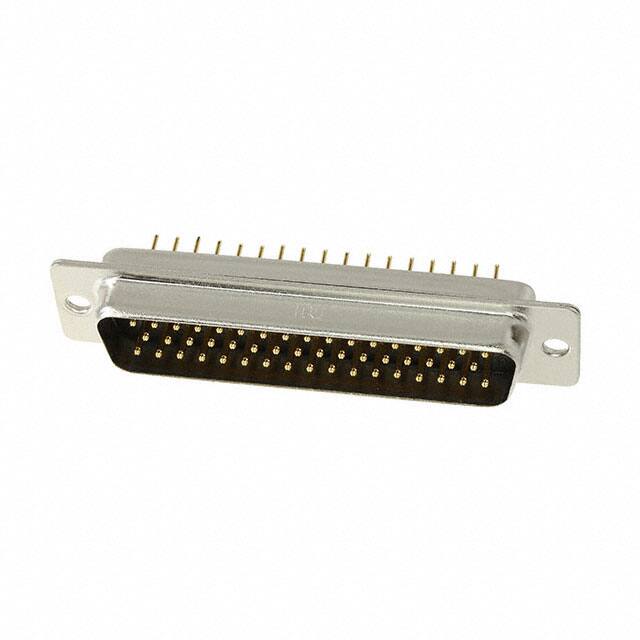

SDDB-50P(55)

Teknik Özellikler

Housing Material

PBT

Length Termination

0.157 inch

Flange Feature

Housing/Shell (Unthreaded)

Shell Size Connector Layout

5 DD D

Contact Materials

Phosphor Bronze

Contact Finish

Gold

Pcb Contact Row Spacing

2.8448 mm

Nominal Gerilim

350V

Contact Resistance

15mOhm

Terminal Adımı

2.7686mm

Akım Değeri

3A

Contact Finish Thickness

8.00μin 0.203μm

Pozisyon Sayısı

50

Kurşunsuz

Lead Free

Renk

Black

Ambalaj

Tray

Yayın Yılı

2012

Connector Style

D-Sub

Terminal

Solder

Dielectric Material

Polybutylene Terephthalate (PBT)

Montaj

Through Hole

Sıra Sayısı

3

Connector Type

Plug, Male Pins

Fabrika Tedarik Süresi

12 Weeks

Parça Durumu

Active

Rated Current Signal

3A

Montaj Tipi

Panel Mount, Through Hole

Reliability

COMMERCIAL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Pcb Rows

3

Total Number Of Contacts

50

Reference Standard

UL

REACH Uyumluluk Kodu

unknown

Contact Type

Signal

Pcb Contact Pattern

STAGGERED

Seri

SD

Material Flammability Rating

UL94 V-0

Shell Material Finish

Steel, Nickel Plated

RoHS Durumu

RoHS Compliant
