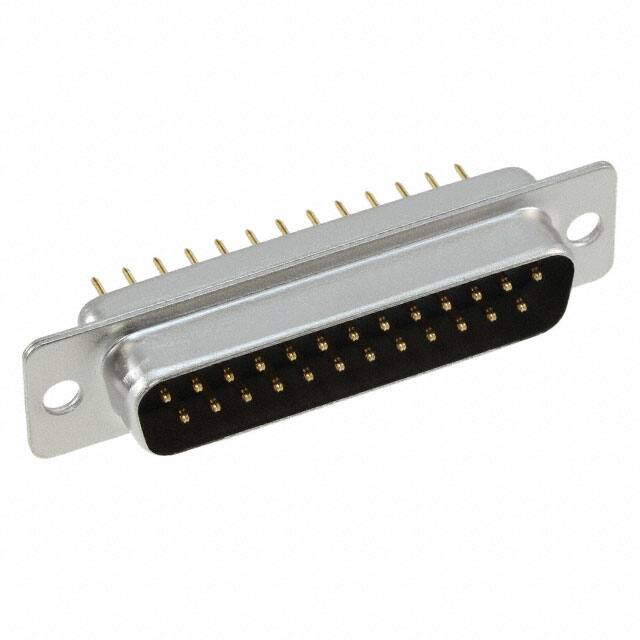

SDBB-25P(55)

Teknik Özellikler

Housing Material

PBT

Total Number Of Contacts

25

Contact Finish

Gold

Flange Feature

Housing/Shell (Unthreaded)

Contact Finish Thickness

8.00μin 0.203μm

Nominal Gerilim

350V

Yayın Yılı

2005

Contact Type

Signal

RoHS Durumu

RoHS Compliant

Montaj

Through Hole

Contact Materials

Phosphor Bronze

Dielectric Withstanding Voltage

1750VAC V

Insulation Resistance

5000000000Ohm

Ambalaj

Tray

Seri

SD

Shell Size Connector Layout

3 DB B

Rated Current Signal

3A

Number Of Pcb Rows

2

Parça Durumu

Active

Material Flammability Rating

UL94 V-0

Sıra Sayısı

2

Akım Değeri

3A

Shell Material Finish

Steel, Nickel Plated

Connector Type

Plug, Male Pins

Fabrika Tedarik Süresi

10 Weeks

Reference Standard

UL

Montaj Tipi

Panel Mount, Through Hole

Dielectric Material

Polybutylene Terephthalate (PBT)

REACH Uyumluluk Kodu

unknown

Pcb Contact Pattern

STAGGERED

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Resistance

15mOhm

Pozisyon Sayısı

25

Renk

Black

Connector Style

D-Sub

Length Termination

0.157 inch

Terminal

Solder

Reliability

COMMERCIAL
